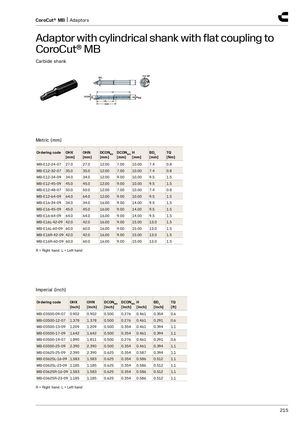

CoroCut® MB
Carbide shank
Metric (mm)
| Ordering code | OHX [mm] | OHN [mm] | DCONMS [mm] | DCONWS [mm] | H [mm] | BD1 [mm] | TQ [Nm] |
| MB-E12-24-07 | 27.0 | 27.0 | 12.00 | 7.00 | 10.00 | 7.4 | 0.8 |
| MB-E12-32-07 | 35.0 | 35.0 | 12.00 | 7.00 | 10.00 | 7.4 | 0.8 |
| MB-E12-34-09 | 34.0 | 34.0 | 12.00 | 9.00 | 10.00 | 9.5 | 1.5 |
| MB-E12-45-09 | 45.0 | 45.0 | 12.00 | 9.00 | 10.00 | 9.5 | 1.5 |
| MB-E12-48-07 | 50.0 | 50.0 | 12.00 | 7.00 | 10.00 | 7.4 | 0.8 |
| MB-E12-64-09 | 64.0 | 64.0 | 12.00 | 9.00 | 10.00 | 9.5 | 1.5 |
| MB-E16-34-09 | 34.0 | 34.0 | 16.00 | 9.00 | 14.00 | 9.5 | 1.5 |
| MB-E16-45-09 | 45.0 | 45.0 | 16.00 | 9.00 | 14.00 | 9.5 | 1.5 |
| MB-E16-64-09 | 64.0 | 64.0 | 16.00 | 9.00 | 14.00 | 9.5 | 1.5 |
| MB-E16L-42-09 | 42.0 | 42.0 | 16.00 | 9.00 | 15.00 | 13.0 | 1.5 |
| MB-E16L-60-09 | 60.0 | 60.0 | 16.00 | 9.00 | 15.00 | 13.0 | 1.5 |
| MB-E16R-42-09 | 42.0 | 42.0 | 16.00 | 9.00 | 15.00 | 13.0 | 1.5 |
| MB-E16R-60-09 | 60.0 | 60.0 | 16.00 | 9.00 | 15.00 | 13.0 | 1.5 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | OHX [inch] | OHN [inch] | DCONMS [inch] | DCONW [inch] | S H [inch] | BD1 [inch] | TQ [ft] |
| MB-E0500-09-07 | 0.902 | 0.902 | 0.500 | 0.276 | 0.461 | 0.354 | 0.6 |
| MB-E0500-12-07 | 1.378 | 1.378 | 0.500 | 0.276 | 0.461 | 0.291 | 0.6 |
| MB-E0500-13-09 | 1.209 | 1.209 | 0.500 | 0.354 | 0.461 | 0.394 | 1.1 |
| MB-E0500-17-09 | 1.642 | 1.642 | 0.500 | 0.354 | 0.461 | 0.394 | 1.1 |
| MB-E0500-19-07 | 1.890 | 1.811 | 0.500 | 0.276 | 0.461 | 0.291 | 0.6 |
| MB-E0500-25-09 | 2.390 | 2.390 | 0.500 | 0.354 | 0.461 | 0.394 | 1.1 |
| MB-E0625-25-09 | 2.390 | 2.390 | 0.625 | 0.354 | 0.587 | 0.394 | 1.1 |
| MB-E0625L-16-09 | 1.583 | 1.583 | 0.625 | 0.354 | 0.586 | 0.512 | 1.1 |
| MB-E0625L-23-09 | 1.185 | 1.185 | 0.625 | 0.354 | 0.586 | 0.512 | 1.1 |
| MB-E0625R-16-09 | 1.583 | 1.583 | 0.625 | 0.354 | 0.586 | 0.512 | 1.1 |
| MB-E0625R-23-09 | 1.185 | 1.185 | 0.625 | 0.354 | 0.586 | 0.512 | 1.1 |
