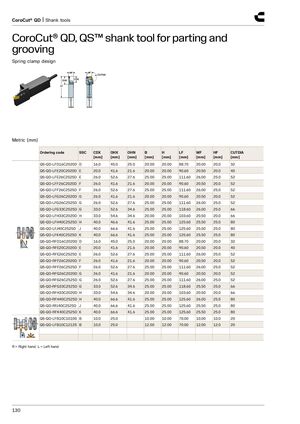

grooving
Spring clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] |
| QS-QD-LFD16C2020D D | 16.0 | 45.0 | 25.0 | 20.00 | 20.00 | 88.70 | 20.00 | 20.0 | 32 |
| QS-QD-LFE20C2020D E | 20.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 40 |
| QS-QD-LFE26C2525D E | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-LFF26C2020D F | 26.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 52 |
| QS-QD-LFF26C2525D F | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-LFG26C2020D G | 26.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 52 |
| QS-QD-LFG26C2525D G | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-LFG33C2525D G | 33.0 | 52.6 | 34.6 | 25.00 | 25.00 | 118.60 | 26.00 | 25.0 | 66 |
| QS-QD-LFH33C2020D H | 33.0 | 54.6 | 34.6 | 20.00 | 20.00 | 103.60 | 20.50 | 20.0 | 66 |
| QS-QD-LFH40C2525D H | 40.0 | 46.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 | 25.0 | 80 |
| QS-QD-LFJ40C2525D J | 40.0 | 66.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 | 25.0 | 80 |
| QS-QD-LFK40C2525D K | 40.0 | 66.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 | 25.0 | 80 |
| QS-QD-RFD16C2020D D | 16.0 | 45.0 | 25.0 | 20.00 | 20.00 | 88.70 | 20.00 | 20.0 | 32 |
| QS-QD-RFE20C2020D E | 20.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 40 |
| QS-QD-RFE26C2525D E | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-RFF26C2020D F | 26.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 52 |
| QS-QD-RFF26C2525D F | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-RFG26C2020D G | 26.0 | 41.6 | 21.6 | 20.00 | 20.00 | 90.60 | 20.50 | 20.0 | 52 |
| QS-QD-RFG26C2525D G | 26.0 | 52.6 | 27.6 | 25.00 | 25.00 | 111.60 | 26.00 | 25.0 | 52 |
| QS-QD-RFG33C2525D G | 33.0 | 52.6 | 34.6 | 25.00 | 25.00 | 118.60 | 25.50 | 25.0 | 66 |
| QS-QD-RFH33C2020D H | 33.0 | 54.6 | 34.6 | 20.00 | 20.00 | 103.60 | 20.50 | 20.0 | 66 |
| QS-QD-RFH40C2525D H | 40.0 | 66.6 | 41.6 | 25.00 | 25.00 | 125.60 | 26.00 | 25.0 | 80 |
| QS-QD-RFJ40C2525D J | 40.0 | 66.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 | 25.0 | 80 |
| QS-QD-RFK40C2525D K | 40.0 | 66.6 | 41.6 | 25.00 | 25.00 | 125.60 | 25.50 | 25.0 | 80 |
| QS-QD-LFB10C1010S B | 10.0 | 25.0 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 20 | |
| QS-QD-LFB10C1212S B | 10.0 | 25.0 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 20 |
R = Right hand, L = Left hand
