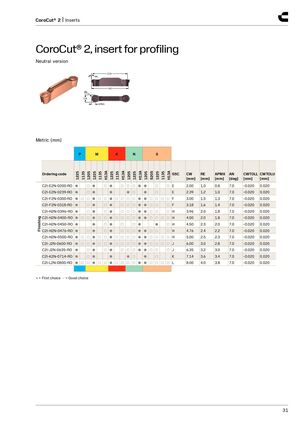

CoroCut® 2, insert for profiling
Neutral version
CDX AN
LIG RE CW APMX
Metric (mm)
| P | M | K | N | S | ||||||||||||||||
| Ordering code | 1225 1135 | 1205 1225 | 1135 | H13A 1225 | 1135 | H13A | 1205 | 1225 | H13A | 1205 | S205 1225 1135 | H13A SSC | CW [mm] | RE [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | ||
| C2I-E2N-0200-RO | ● ○ | ● | ○● | ○ | ○ | ○ | ● | ● | ○ | ○E | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | ||||
| C2I-E2N-0239-RO | ● ○ | ● | ● | ● | ○ | ● | ○ | E | 2.39 | 1.2 | 1.0 | 7.0 | -0.020 | 0.020 | ||||||
| C2I-F2N-0300-RO | ●○○ | ● | ○ | ○● | ○ | ○ | ○ | ○ | ● | ● | ○○○ | ○F | 3.00 | 1.5 | 1.3 | 7.0 | -0.020 | 0.020 | ||
| C2I-F2N-0318-RO | ● ○ | ● | ○● | ○ | ○ | ○ | ● | ● | ○○ | ○F | 3.18 | 1.6 | 1.4 | 7.0 | -0.020 | 0.020 | ||||
| C2I-H2N-0396-RO | ● ○ | ● | ○● | ○ | ○ | ○ | ● | ● | ○○ | ○H | 3.96 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | ||||
| ing C2I-H2N-0400-RO | ●○○ | ● | ○ | ○● | ○ | ○ | ○ | ○ | ● | ● | ○○○ | ○H | 4.00 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | ||
| nish C2I-H2N-0450-RO | ● | ● | ○● | ○ | ○ | ● | ● | ○H | 4.50 | 2.3 | 2.0 | 7.0 | -0.020 | 0.020 | ||||||
| Fi C2I-H2N-0476-RO | ● ○ | ● | ○● | ○ | ○ | ○ | ● | ● | ○○ | ○H | 4.76 | 2.4 | 2.2 | 7.0 | -0.020 | 0.020 | ||||
| C2I-H2N-0500-RO | ●○○ | ● | ○ | ○● | ○ | ○ | ○ | ○ | ● | ● | ○○○ | ○H | 5.00 | 2.5 | 2.3 | 7.0 | -0.020 | 0.020 | ||
| C2I-J2N-0600-RO | ●○○ | ● | ○ | ○● | ○ | ○ | ○ | ○ | ● | ● | ○○○ | ○J | 6.00 | 3.0 | 2.8 | 7.0 | -0.020 | 0.020 | ||
| C2I-J2N-0635-RO | ● ○ | ● | ○● | ○ | ○ | ○ | ● | ● | ○○ | ○J | 6.35 | 3.2 | 3.0 | 7.0 | -0.020 | 0.020 | ||||
| C2I-K2N-0714-RO | ● ○ | ● | ● | ● | ○ | ● | ○ | K | 7.14 | 3.6 | 3.4 | 7.0 | -0.020 | 0.020 | ||||||
| C2I-L2N-0800-RO | ●○○ | ● | ○ | ○● | ○ | ○ | ○ | ○ | ● | ● | ○○○ | ○L | 8.00 | 4.0 | 3.8 | 7.0 | -0.020 | 0.020 |
- = First choice ○ = Good choice
