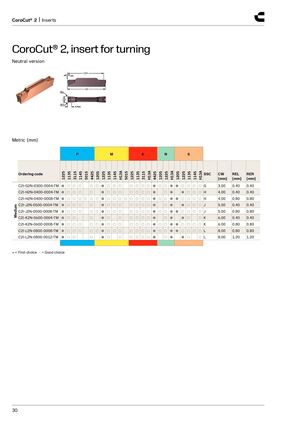

CoroCut® 2, insert for turning
Neutral version
CDX AN
REL CW RER
LIG
APMX
Metric (mm)
| P | M | K | N | S | ||||||||||||||||
| Ordering code | 1225 1135 | 3115 1145 | 5015 4425 | 1205 1225 1135 | 1145 | H13A | 5015 | 1225 | 1135 3115 H13A 4425 1205 | 1225 | H13A | 1205 | 1225 | 1135 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | ||
| C2I-G2N-0300-0004-TM | ●○ | ○○ | ○ | ○●○ | ○ | ○ | ○ | ○○○●○ | ○ | ● | ● | ○ | ○○ | ○G | 3.00 | 0.40 | 0.40 | |||
| C2I-H2N-0400-0004-TM | ●○ | ○○ | ○ | ●○ | ○ | ○ | ○ | ○○○● | ○ | ● | ● | ○○ | ○H | 4.00 | 0.40 | 0.40 | ||||
| C2I-H2N-0400-0008-TM | ●○ | ○○ | ○○ | ○●○ | ○ | ○ | ○ | ○ | ○○○●○ | ○ | ● | ● | ○ | ○○ | ○H | 4.00 | 0.80 | 0.80 | ||
| m C2I-J2N-0500-0004-TM | ●○ | ○○ | ○ | ●○ | ○ | ○ | ○ | ○○○● | ○ | ● | ● | ○○ | ○J | 5.00 | 0.40 | 0.40 | ||||
| ediu C2I-J2N-0500-0008-TM | ●○ | ○○ | ○ | ○●○ | ○ | ○ | ○ | ○○○●○ | ○ | ● | ● | ○ | ○○ | ○J | 5.00 | 0.80 | 0.80 | |||
| M C2I-K2N-0600-0004-TM | ●○ | ○ | ○ | ●○ | ○ | ○ | ○○○● | ○ | ● | ● | ○ | ○K | 6.00 | 0.40 | 0.40 | |||||
| C2I-K2N-0600-0008-TM | ●○ | ○○ | ○ | ○●○ | ○ | ○ | ○ | ○○○●○ | ○ | ● | ● | ○ | ○○ | ○K | 6.00 | 0.80 | 0.80 | |||
| C2I-L2N-0800-0008-TM | ●○ | ○○ | ○ | ○●○ | ○ | ○ | ○ | ○○○●○ | ○ | ● | ● | ○ | ○○ | ○L | 8.00 | 0.80 | 0.80 | |||
| C2I-L2N-0800-0012-TM | ●○ | ○ | ○ | ●○ | ○ | ○ | ○○○● | ○ | ● | ● | ○ | ○L | 8.00 | 1.20 | 1.20 |
- = First choice ○ = Good choice
