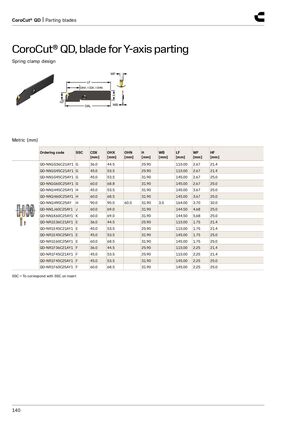

CoroCut® QD, blade for Y-axis parting
Spring clamp design
WF LF OHX / CDX / OHN H HF OAL WB
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | H [mm] | WB [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-NN1G36C21AY1 | G | 36.0 | 44.5 | 25.90 | 115.00 | 2.67 | 21.4 | ||
| QD-NN1G45C21AY1 | G | 45.0 | 53.5 | 25.90 | 115.00 | 2.67 | 21.4 | ||
| QD-NN1G45C25AY1 | G | 45.0 | 53.5 | 31.90 | 145.00 | 2.67 | 25.0 | ||
| QD-NN1G60C25AY1 | G | 60.0 | 68.8 | 31.90 | 145.00 | 2.67 | 25.0 | ||
| QD-NN1H45C25AY1 | H | 45.0 | 53.5 | 31.90 | 145.00 | 3.67 | 25.0 | ||
| QD-NN1H60C25AY1 | H | 60.0 | 68.5 | 31.90 | 145.00 | 3.67 | 25.0 | ||
| QD-NN1H90C25AY | H | 90.0 | 90.0 | 60.0 | 31.90 | 3.3 | 164.00 | 3.70 | 32.0 |
| QD-NN1J60C25AY1 | J | 60.0 | 69.0 | 31.90 | 144.50 | 4.68 | 25.0 | ||
| QD-NN1K60C25AY1 | K | 60.0 | 69.0 | 31.90 | 144.50 | 5.68 | 25.0 | ||
| QD-NR1E36C21AY1 | E | 36.0 | 44.5 | 25.90 | 115.00 | 1.75 | 21.4 | ||
| QD-NR1E45C21AY1 | E | 45.0 | 53.5 | 25.90 | 115.00 | 1.75 | 21.4 | ||
| QD-NR1E45C25AY1 | E | 45.0 | 53.5 | 31.90 | 145.00 | 1.75 | 25.0 | ||
| QD-NR1E60C25AY1 | E | 60.0 | 68.5 | 31.90 | 145.00 | 1.75 | 25.0 | ||
| QD-NR1F36C21AY1 | F | 36.0 | 44.5 | 25.90 | 115.00 | 2.25 | 21.4 | ||
| QD-NR1F45C21AY1 | F | 45.0 | 53.5 | 25.90 | 115.00 | 2.25 | 21.4 | ||
| QD-NR1F45C25AY1 | F | 45.0 | 53.5 | 31.90 | 145.00 | 2.25 | 25.0 | ||
| QD-NR1F60C25AY1 | F | 60.0 | 68.5 | 31.90 | 145.00 | 2.25 | 25.0 |
SSC = To correspond with SSC on insert
