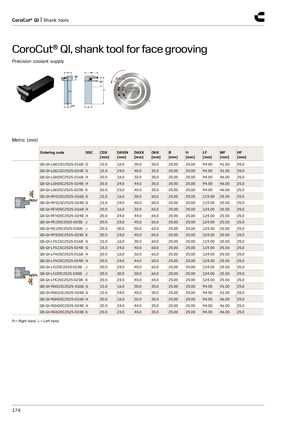

CoroCut® QI | Shank tools
CoroCut® QI, shank tool for face grooving
Precision coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QS-QI-LGG15C2525-016B | G | 15.0 | 16.0 | 30.0 | 35.0 | 25.00 | 25.00 | 94.00 | 41.00 | 25.0 |
| QS-QI-LGG15C2525-024B | G | 15.0 | 24.0 | 40.0 | 35.0 | 25.00 | 25.00 | 94.00 | 41.00 | 25.0 |
| QS-QI-LGH20C2525-016B | H | 20.0 | 16.0 | 32.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
| QS-QI-LGH20C2525-024B | H | 20.0 | 24.0 | 44.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
| QS-QI-LGK20C2525-023B | K | 20.0 | 23.0 | 45.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
| QS-QI-RFG15C2525-016B | G | 15.0 | 16.0 | 30.0 | 60.0 | 25.00 | 25.00 | 119.00 | 25.50 | 25.0 |
| QS-QI-RFG15C2525-024B | G | 15.0 | 24.0 | 40.0 | 60.0 | 25.00 | 25.00 | 119.00 | 25.50 | 25.0 |
| QS-QI-RFH20C2525-016B | H | 20.0 | 16.0 | 32.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-RFH20C2525-024B | H | 20.0 | 24.0 | 44.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-RFJ20C2525-023B | J | 20.0 | 23.0 | 45.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-RFJ20C2525-030B | J | 20.0 | 30.0 | 50.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-RFK20C2525-023B | K | 20.0 | 23.0 | 45.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-LFG15C2525-016B | G | 15.0 | 16.0 | 30.0 | 60.0 | 25.00 | 25.00 | 119.00 | 25.50 | 25.0 |
| QS-QI-LFG15C2525-024B | G | 15.0 | 24.0 | 40.0 | 60.0 | 25.00 | 25.00 | 119.00 | 25.50 | 25.0 |
| QS-QI-LFH20C2525-016B | H | 20.0 | 16.0 | 32.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-LFH20C2525-024B | H | 20.0 | 24.0 | 44.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-LFJ20C2525-023B | J | 20.0 | 23.0 | 45.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-LFJ20C2525-030B | J | 20.0 | 30.0 | 50.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-LFK20C2525-023B | K | 20.0 | 23.0 | 45.0 | 65.0 | 25.00 | 25.00 | 124.00 | 25.50 | 25.0 |
| QS-QI-RGG15C2525-016B | G | 15.0 | 16.0 | 30.0 | 35.0 | 25.00 | 25.00 | 94.00 | 41.00 | 25.0 |
| QS-QI-RGG15C2525-024B | G | 15.0 | 24.0 | 40.0 | 35.0 | 25.00 | 25.00 | 94.00 | 41.00 | 25.0 |
| QS-QI-RGH20C2525-016B | H | 20.0 | 16.0 | 32.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
| QS-QI-RGH20C2525-024B | H | 20.0 | 24.0 | 44.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
| QS-QI-RGK20C2525-023B | K | 20.0 | 23.0 | 45.0 | 35.0 | 25.00 | 25.00 | 94.00 | 46.00 | 25.0 |
R = Right hand, L = Left hand
