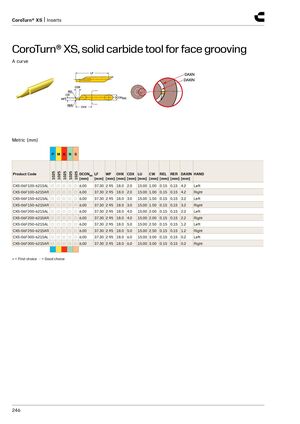

CoroTurn® XS, solid carbide tool for face grooving
A curve
Metric (mm)
PMKNS
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONM [mm] | S LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND |
| CXS-06F100-6215AL | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 2.0 | 15.00 | 1.00 | 0.15 | 0.15 | 4.2 | Left |
| CXS-06F100-6215AR | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 2.0 | 15.00 | 1.00 | 0.15 | 0.15 | 4.2 | Right |
| CXS-06F150-6215AL | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 3.0 | 15.00 | 1.50 | 0.15 | 0.15 | 3.2 | Left |
| CXS-06F150-6215AR | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 3.0 | 15.00 | 1.50 | 0.15 | 0.15 | 3.2 | Right |
| CXS-06F200-6215AL | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 4.0 | 15.00 | 2.00 | 0.15 | 0.15 | 2.2 | Left |
| CXS-06F200-6215AR | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 4.0 | 15.00 | 2.00 | 0.15 | 0.15 | 2.2 | Right |
| CXS-06F250-6215AL | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 5.0 | 15.00 | 2.50 | 0.15 | 0.15 | 1.2 | Left |
| CXS-06F250-6215AR | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 5.0 | 15.00 | 2.50 | 0.15 | 0.15 | 1.2 | Right |
| CXS-06F300-6215AL | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 6.0 | 15.00 | 3.00 | 0.15 | 0.15 | 0.2 | Left |
| CXS-06F300-6215AR | ○ | ○ | ○ | ○ | ○ | 6.00 | 37.30 | 2.95 | 18.0 | 6.0 | 15.00 | 3.00 | 0.15 | 0.15 | 0.2 | Right |
- = First choice = Good choice
