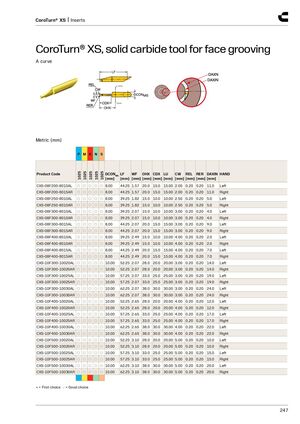

CoroTurn® XS, solid carbide tool for face grooving
A curve
Metric (mm)
| Product Code | P 1025 | M 1025 | K 1025 | N S 1025 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND |
| CXS-08F200-8015AL | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 1.57 | 20.0 | 15.0 | 15.00 | 2.00 | 0.20 | 0.20 | 11.0 | Left |
| CXS-08F200-8015AR | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 1.57 | 20.0 | 15.0 | 15.00 | 2.00 | 0.20 | 0.20 | 11.0 | Right |
| CXS-08F250-8010AL | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 1.82 | 15.0 | 10.0 | 10.00 | 2.50 | 0.20 | 0.20 | 5.0 | Left |
| CXS-08F250-8010AR | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 1.82 | 15.0 | 10.0 | 10.00 | 2.50 | 0.20 | 0.20 | 5.0 | Right |
| CXS-08F300-8010AL | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 2.07 | 15.0 | 10.0 | 10.00 | 3.00 | 0.20 | 0.20 | 4.0 | Left |
| CXS-08F300-8010AR | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 2.07 | 15.0 | 10.0 | 10.00 | 3.00 | 0.20 | 0.20 | 4.0 | Right |
| CXS-08F300-8015AL | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 2.07 | 20.0 | 15.0 | 15.00 | 3.00 | 0.20 | 0.20 | 9.0 | Left |
| CXS-08F300-8015AR | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 2.07 | 20.0 | 15.0 | 15.00 | 3.00 | 0.20 | 0.20 | 9.0 | Right |
| CXS-08F400-8010AL | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 2.49 | 15.0 | 10.0 | 10.00 | 4.00 | 0.20 | 0.20 | 2.0 | Left |
| CXS-08F400-8010AR | ○ | ○ | ○ | ○○ | 8.00 | 39.25 | 2.49 | 15.0 | 10.0 | 10.00 | 4.00 | 0.20 | 0.20 | 2.0 | Right |
| CXS-08F400-8015AL | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 2.49 | 20.0 | 15.0 | 15.00 | 4.00 | 0.20 | 0.20 | 7.0 | Left |
| CXS-08F400-8015AR | ○ | ○ | ○ | ○○ | 8.00 | 44.25 | 2.49 | 20.0 | 15.0 | 15.00 | 4.00 | 0.20 | 0.20 | 7.0 | Right |
| CXS-10F300-10020AL | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 2.07 | 28.0 | 20.0 | 20.00 | 3.00 | 0.20 | 0.20 | 14.0 | Left |
| CXS-10F300-10020AR | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 2.07 | 28.0 | 20.0 | 20.00 | 3.00 | 0.20 | 0.20 | 14.0 | Right |
| CXS-10F300-10025AL | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 2.07 | 33.0 | 25.0 | 25.00 | 3.00 | 0.20 | 0.20 | 19.0 | Left |
| CXS-10F300-10025AR | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 2.07 | 33.0 | 25.0 | 25.00 | 3.00 | 0.20 | 0.20 | 19.0 | Right |
| CXS-10F300-10030AL | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 2.07 | 38.0 | 30.0 | 30.00 | 3.00 | 0.20 | 0.20 | 24.0 | Left |
| CXS-10F300-10030AR | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 2.07 | 38.0 | 30.0 | 30.00 | 3.00 | 0.20 | 0.20 | 24.0 | Right |
| CXS-10F400-10020AL | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 2.65 | 28.0 | 20.0 | 20.00 | 4.00 | 0.20 | 0.20 | 12.0 | Left |
| CXS-10F400-10020AR | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 2.65 | 28.0 | 20.0 | 20.00 | 4.00 | 0.20 | 0.20 | 12.0 | Right |
| CXS-10F400-10025AL | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 2.65 | 33.0 | 25.0 | 25.00 | 4.00 | 0.20 | 0.20 | 17.0 | Left |
| CXS-10F400-10025AR | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 2.65 | 33.0 | 25.0 | 25.00 | 4.00 | 0.20 | 0.20 | 17.0 | Right |
| CXS-10F400-10030AL | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 2.65 | 38.0 | 30.0 | 30.00 | 4.00 | 0.20 | 0.20 | 22.0 | Left |
| CXS-10F400-10030AR | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 2.65 | 38.0 | 30.0 | 30.00 | 4.00 | 0.20 | 0.20 | 22.0 | Right |
| CXS-10F500-10020AL | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 3.10 | 28.0 | 20.0 | 20.00 | 5.00 | 0.20 | 0.20 | 10.0 | Left |
| CXS-10F500-10020AR | ○ | ○ | ○ | ○○ | 10.00 | 52.25 | 3.10 | 28.0 | 20.0 | 20.00 | 5.00 | 0.20 | 0.20 | 10.0 | Right |
| CXS-10F500-10025AL | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 3.10 | 33.0 | 25.0 | 25.00 | 5.00 | 0.20 | 0.20 | 15.0 | Left |
| CXS-10F500-10025AR | ○ | ○ | ○ | ○○ | 10.00 | 57.25 | 3.10 | 33.0 | 25.0 | 25.00 | 5.00 | 0.20 | 0.20 | 15.0 | Right |
| CXS-10F500-10030AL | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 3.10 | 38.0 | 30.0 | 30.00 | 5.00 | 0.20 | 0.20 | 20.0 | Left |
| CXS-10F500-10030AR | ○ | ○ | ○ | ○○ | 10.00 | 62.25 | 3.10 | 38.0 | 30.0 | 30.00 | 5.00 | 0.20 | 0.20 | 20.0 | Right |
