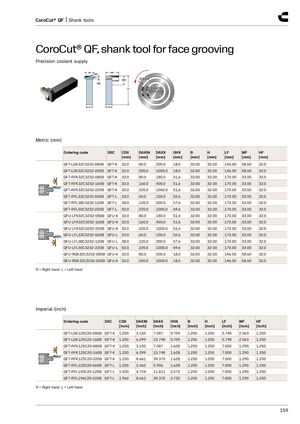

CoroCut® QF, shank tool for face grooving
Precision coolant supply
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QFT-LGK32C3232-080B | QFT-K | 32.0 | 80.0 | 200.0 | 18.0 | 32.00 | 32.00 | 146.00 | 58.60 | 32.0 |
| QFT-LGK32C3232-200B | QFT-K | 32.0 | 200.0 | 1000.0 | 18.0 | 32.00 | 32.00 | 146.00 | 58.60 | 32.0 |
| QFT-RFK32C3232-080B | QFT-K | 32.0 | 80.0 | 180.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFT-RFK32C3232-160B | QFT-K | 32.0 | 160.0 | 400.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFT-RFK32C3232-220B | QFT-K | 32.0 | 220.0 | 1000.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFT-RFL33C3232-060B | QFT-L | 33.0 | 60.0 | 150.0 | 52.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFT-RFL38C3232-120B | QFT-L | 38.0 | 120.0 | 300.0 | 57.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFT-RFL50C3232-220B | QFT-L | 50.0 | 220.0 | 1000.0 | 69.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFK32C3232-080B | QFU-K | 32.0 | 80.0 | 180.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFK32C3232-160B | QFU-K | 32.0 | 160.0 | 400.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFK32C3232-220B | QFU-K | 32.0 | 220.0 | 1000.0 | 51.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFL33C3232-060B | QFU-L | 33.0 | 60.0 | 150.0 | 52.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFL38C3232-120B | QFU-L | 38.0 | 120.0 | 300.0 | 57.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-LFL50C3232-220B | QFU-L | 50.0 | 220.0 | 1000.0 | 69.6 | 32.00 | 32.00 | 170.00 | 33.00 | 32.0 |
| QFU-RGK32C3232-080B | QFU-K | 32.0 | 80.0 | 200.0 | 18.0 | 32.00 | 32.00 | 146.00 | 58.60 | 32.0 |
| QFU-RGK32C3232-200B | QFU-K | 32.0 | 200.0 | 1000.0 | 18.0 | 32.00 | 32.00 | 146.00 | 58.60 | 32.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] |
| QFT-LGK125C20-080B | QFT-K | 1.250 | 3.150 | 7.087 | 0.709 | 1.250 | 1.250 | 5.748 | 2.563 | 1.250 |
| QFT-LGK125C20-160B | QFT-K | 1.250 | 6.299 | 15.748 | 0.709 | 1.250 | 1.250 | 5.748 | 2.563 | 1.250 |
| QFT-RFK125C20-080B | QFT-K | 1.250 | 3.150 | 7.087 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFT-RFK125C20-160B | QFT-K | 1.250 | 6.299 | 15.748 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFT-RFK125C20-220B | QFT-K | 1.250 | 8.661 | 39.370 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFT-RFL125C20-060B | QFT-L | 1.250 | 2.362 | 5.906 | 1.628 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFT-RFL150C20-120B | QFT-L | 1.500 | 4.724 | 11.811 | 2.272 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
| QFT-RFL196C20-220B | QFT-L | 1.960 | 8.661 | 39.370 | 2.732 | 1.250 | 1.250 | 7.000 | 1.290 | 1.250 |
