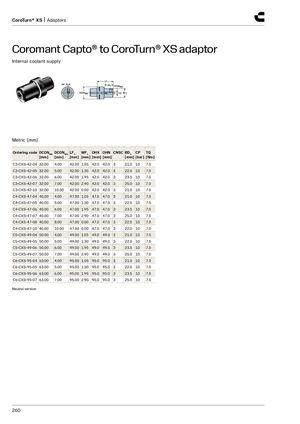

Coromant Capto® to CoroTurn® XS adaptor
Internal coolant supply
Metric (mm)
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF1 [mm] | WF1 [mm] | OHX [mm] | OHN [mm] | CNSC | BD1 [mm] | CP [bar] | TQ [Nm] |
| C3-CXS-42-04 | 32.00 | 4.00 | 42.00 | 1.05 | 42.0 | 42.0 | 3 | 21.0 | 10 | 7.0 |
| C3-CXS-42-05 | 32.00 | 5.00 | 42.00 | 1.30 | 42.0 | 42.0 | 3 | 22.0 | 10 | 7.0 |
| C3-CXS-42-06 | 32.00 | 6.00 | 42.00 | 1.95 | 42.0 | 42.0 | 3 | 23.5 | 10 | 7.0 |
| C3-CXS-42-07 | 32.00 | 7.00 | 42.00 | 2.90 | 42.0 | 42.0 | 3 | 25.0 | 10 | 7.0 |
| C3-CXS-42-10 | 32.00 | 10.00 | 42.00 | 0.00 | 42.0 | 42.0 | 3 | 21.0 | 10 | 7.0 |
| C4-CXS-47-04 | 40.00 | 4.00 | 47.00 | 1.05 | 47.0 | 47.0 | 3 | 21.0 | 10 | 7.0 |
| C4-CXS-47-05 | 40.00 | 5.00 | 47.00 | 1.30 | 47.0 | 47.0 | 3 | 22.0 | 10 | 7.0 |
| C4-CXS-47-06 | 40.00 | 6.00 | 47.00 | 1.95 | 47.0 | 47.0 | 3 | 23.5 | 10 | 7.0 |
| C4-CXS-47-07 | 40.00 | 7.00 | 47.00 | 2.90 | 47.0 | 47.0 | 3 | 25.0 | 10 | 7.0 |
| C4-CXS-47-08 | 40.00 | 8.00 | 47.00 | 0.00 | 47.0 | 47.0 | 3 | 22.0 | 10 | 7.0 |
| C4-CXS-47-10 | 40.00 | 10.00 | 47.00 | 0.00 | 47.0 | 47.0 | 3 | 22.0 | 10 | 7.0 |
| C5-CXS-49-04 | 50.00 | 4.00 | 49.00 | 1.05 | 49.0 | 49.0 | 3 | 21.0 | 10 | 7.0 |
| C5-CXS-49-05 | 50.00 | 5.00 | 49.00 | 1.30 | 49.0 | 49.0 | 3 | 22.0 | 10 | 7.0 |
| C5-CXS-49-06 | 50.00 | 6.00 | 49.00 | 1.95 | 49.0 | 49.0 | 3 | 23.5 | 10 | 7.0 |
| C5-CXS-49-07 | 50.00 | 7.00 | 49.00 | 2.90 | 49.0 | 49.0 | 3 | 25.0 | 10 | 7.0 |
| C6-CXS-95-04 | 63.00 | 4.00 | 95.00 | 1.05 | 95.0 | 95.0 | 3 | 21.0 | 10 | 7.0 |
| C6-CXS-95-05 | 63.00 | 5.00 | 95.00 | 1.30 | 95.0 | 95.0 | 3 | 22.0 | 10 | 7.0 |
| C6-CXS-95-06 | 63.00 | 6.00 | 95.00 | 1.95 | 95.0 | 95.0 | 3 | 23.5 | 10 | 7.0 |
| C6-CXS-95-07 | 63.00 | 7.00 | 95.00 | 2.90 | 95.0 | 95.0 | 3 | 25.0 | 10 | 7.0 |
Neutral version
