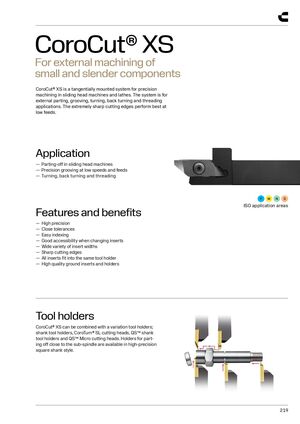

CoroCut® XS CoroCut® XS For external machining of small and slender components CoroCut® XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, back turning and threading applications. The extremely sharp cutting edges perform best at low feeds. Application — Parting-off in sliding head machines — Precision grooving at low speeds and feeds — Turning, back turning and threading ISO application areas Features and benefits — High precision — Close tolerances — Easy indexing — Good accessibility when changing inserts — Wide variety of insert widths — Sharp cutting edges — All inserts fit into the same tool holder — High quality ground inserts and holders Tool holders CoroCut® XS can be combined with a variation tool holders; shank tool holders, CoroTurn® SL cutting heads, QS™ shank tool holders and QS™ Micro cutting heads. Holders for part- ing off close to the sub-spindle are available in high-precision square shank style. 219
