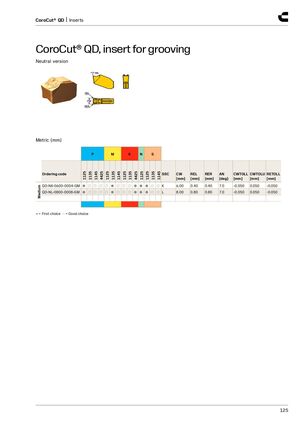

CoroCut® QD, insert for grooving
Neutral version
Metric (mm)
P M K N S
| Ordering code | SSC | CW | REL | RER | AN | CWTOLL CWTOLU RETOLL | ||
| [mm] | [mm] | [mm] | [deg] | [mm] | [mm] | [mm] | ||
| QD-NK-0600-0004-GM | K | 6.00 | 0.40 | 0.40 | 7.0 | -0.050 | 0.050 | -0.050 |
| QD-NL-0800-0008-GM | L | 8.00 | 0.80 | 0.80 | 7.0 | -0.050 | 0.050 | -0.050 |
- = First choice ○ = Good choice
