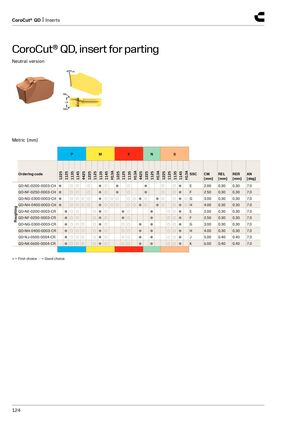

CoroCut® QD, insert for parting
Neutral version
AN
REL
CW
RER
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1225 1125 1135 | 1145 4425 | 1225 1125 1135 1145 H13A | 1225 1125 1135 | H13A 4425 1225 | 1125 | H13A 1225 1125 | 1135 | 1145 H13A | SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | ||
| QD-NE-0200-0003-CH ● | ○ | ○ | ○ ●○ | ● ○ | ● | ○ | ○ | ● | E | 2.00 | 0.30 | 0.30 | 7.0 | |||
| QD-NF-0250-0003-CH ● | ○ | ○ | ○ ●○ | ● ○ | ● | ○ | ○ | ● | F | 2.50 | 0.30 | 0.30 | 7.0 | |||
| QD-NG-0300-0003-CH ● | ○ | ○ | ○ | ○ ●○○ | ○ ○ | ○●○ | ●○ | ○ | ●○ | G | 3.00 | 0.30 | 0.30 | 7.0 | ||
| g QD-NH-0400-0003-CH ● | ○ | ○ | ○ | ○ ●○○ | ○ ○ | ○●○ | ●○ | ○ | ●○ | H | 4.00 | 0.30 | 0.30 | 7.0 | ||
| ghin QD-NE-0200-0003-CR | ●○ | ○ | ○●○ | ●○ | ● | ○ | ○ | ● | E | 2.00 | 0.30 | 0.30 | 7.0 | |||
| Rou QD-NF-0250-0003-CR | ●○ | ○ | ○●○ | ●○ | ● | ○ | ○ | ● | F | 2.50 | 0.30 | 0.30 | 7.0 | |||
| QD-NG-0300-0003-CR | ●○ | ○ | ○ | ○●○ | ○○ | ● | ● | ○ | ○ | ● | G | 3.00 | 0.30 | 0.30 | 7.0 | |
| QD-NH-0400-0003-CR | ●○ | ○ | ○ | ○●○ | ○○ | ● | ● | ○ | ○ | ● | H | 4.00 | 0.30 | 0.30 | 7.0 | |
| QD-NJ-0500-0004-CR | ●○ | ○ | ○ | ○●○ | ○○ | ● | ● | ○ | ○ | ● | J | 5.00 | 0.40 | 0.40 | 7.0 | |
| QD-NK-0600-0004-CR | ●○ | ○ | ○ | ○●○ | ○○ | ● | ● | ○ | ○ | ● | K | 6.00 | 0.40 | 0.40 | 7.0 |
- = First choice ○ = Good choice
