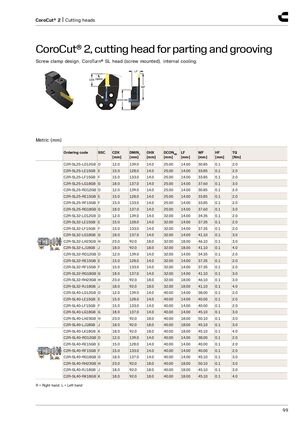

CoroCut® 2, cutting head for parting and grooving
Screw clamp design, CoroTurn® SL head (screw mounted), internal cooling. LF CDX DMIN1 WF
DCON MS
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| C2R-SL25-LD12GB | D | 12.0 | 139.0 | 14.0 | 25.00 | 14.00 | 30.85 | 0.1 | 2.0 |
| C2R-SL25-LE15GB | E | 15.0 | 128.0 | 14.0 | 25.00 | 14.00 | 33.85 | 0.1 | 2.0 |
| C2R-SL25-LF15GB | F | 15.0 | 133.0 | 14.0 | 25.00 | 14.00 | 33.85 | 0.1 | 2.0 |
| C2R-SL25-LG18GB | G | 18.0 | 137.0 | 14.0 | 25.00 | 14.00 | 37.60 | 0.1 | 3.0 |
| C2R-SL25-RD12GB | D | 12.0 | 139.0 | 14.0 | 25.00 | 14.00 | 30.85 | 0.1 | 2.0 |
| C2R-SL25-RE15GB | E | 15.0 | 128.0 | 14.0 | 25.00 | 14.00 | 33.85 | 0.1 | 2.0 |
| C2R-SL25-RF15GB | F | 15.0 | 133.0 | 14.0 | 25.00 | 14.00 | 33.85 | 0.1 | 2.0 |
| C2R-SL25-RG18GB | G | 18.0 | 137.0 | 14.0 | 25.00 | 14.00 | 37.60 | 0.1 | 3.0 |
| C2R-SL32-LD12GB | D | 12.0 | 139.0 | 14.0 | 32.00 | 14.00 | 34.35 | 0.1 | 2.0 |
| C2R-SL32-LE15GB | E | 15.0 | 128.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2R-SL32-LF15GB | F | 15.0 | 133.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2R-SL32-LG18GB | G | 18.0 | 137.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2R-SL32-LH23GB | H | 23.0 | 92.0 | 18.0 | 32.00 | 18.00 | 46.10 | 0.1 | 3.0 |
| C2R-SL32-LJ18GB | J | 18.0 | 92.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2R-SL32-RD12GB | D | 12.0 | 139.0 | 14.0 | 32.00 | 14.00 | 34.35 | 0.1 | 2.0 |
| C2R-SL32-RE15GB | E | 15.0 | 128.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2R-SL32-RF15GB | F | 15.0 | 133.0 | 14.0 | 32.00 | 14.00 | 37.35 | 0.1 | 2.0 |
| C2R-SL32-RG18GB | G | 18.0 | 137.0 | 14.0 | 32.00 | 14.00 | 41.10 | 0.1 | 3.0 |
| C2R-SL32-RH23GB | H | 23.0 | 92.0 | 18.0 | 32.00 | 18.00 | 46.10 | 0.1 | 3.0 |
| C2R-SL32-RJ18GB | J | 18.0 | 92.0 | 18.0 | 32.00 | 18.00 | 41.10 | 0.1 | 4.0 |
| C2R-SL40-LD12GB | D | 12.0 | 139.0 | 14.0 | 40.00 | 14.00 | 38.00 | 0.1 | 2.0 |
| C2R-SL40-LE15GB | E | 15.0 | 128.0 | 14.0 | 40.00 | 14.00 | 40.00 | 0.1 | 2.0 |
| C2R-SL40-LF15GB | F | 15.0 | 133.0 | 14.0 | 40.00 | 14.00 | 40.00 | 0.1 | 2.0 |
| C2R-SL40-LG18GB | G | 18.0 | 137.0 | 14.0 | 40.00 | 14.00 | 45.10 | 0.1 | 3.0 |
| C2R-SL40-LH23GB | H | 23.0 | 92.0 | 18.0 | 40.00 | 18.00 | 50.10 | 0.1 | 3.0 |
| C2R-SL40-LJ18GB | J | 18.0 | 92.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2R-SL40-LK18GB | K | 18.0 | 92.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
| C2R-SL40-RD12GB | D | 12.0 | 139.0 | 14.0 | 40.00 | 14.00 | 38.00 | 0.1 | 2.0 |
| C2R-SL40-RE15GB | E | 15.0 | 128.0 | 14.0 | 40.00 | 14.00 | 40.00 | 0.1 | 2.0 |
| C2R-SL40-RF15GB | F | 15.0 | 133.0 | 14.0 | 40.00 | 14.00 | 40.00 | 0.1 | 2.0 |
| C2R-SL40-RG18GB | G | 18.0 | 137.0 | 14.0 | 40.00 | 14.00 | 45.10 | 0.1 | 3.0 |
| C2R-SL40-RH23GB | H | 23.0 | 92.0 | 18.0 | 40.00 | 18.00 | 50.10 | 0.1 | 3.0 |
| C2R-SL40-RJ18GB | J | 18.0 | 92.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 3.0 |
| C2R-SL40-RK18GB | K | 18.0 | 92.0 | 18.0 | 40.00 | 18.00 | 45.10 | 0.1 | 4.0 |
