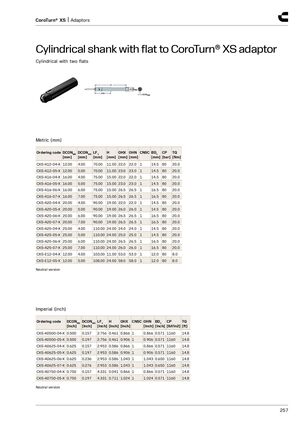

Cylindrical shank with flat to CoroTurn® XS adaptor
Cylindrical with two flats
Metric (mm)
| Ordering code | DCONMS [mm] | DCONWS [mm] | LF1 [mm] | H [mm] | OHX [mm] | OHN [mm] | CNSC | BD1 [mm] | CP [bar] | TQ [Nm] |
| CXS-A12-04-X | 12.00 | 4.00 | 70.00 | 11.00 | 22.0 | 22.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A12-05-X | 12.00 | 5.00 | 70.00 | 11.00 | 23.0 | 23.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A16-04-X | 16.00 | 4.00 | 75.00 | 15.00 | 22.0 | 22.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A16-05-X | 16.00 | 5.00 | 75.00 | 15.00 | 23.0 | 23.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A16-06-X | 16.00 | 6.00 | 75.00 | 15.00 | 26.5 | 26.5 | 1 | 16.5 | 80 | 20.0 |
| CXS-A16-07-X | 16.00 | 7.00 | 75.00 | 15.00 | 26.5 | 26.5 | 1 | 16.5 | 80 | 20.0 |
| CXS-A20-04-X | 20.00 | 4.00 | 90.00 | 19.00 | 22.0 | 22.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A20-05-X | 20.00 | 5.00 | 90.00 | 19.00 | 26.0 | 26.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A20-06-X | 20.00 | 6.00 | 90.00 | 19.00 | 26.5 | 26.5 | 1 | 16.5 | 80 | 20.0 |
| CXS-A20-07-X | 20.00 | 7.00 | 90.00 | 19.00 | 26.5 | 26.5 | 1 | 16.5 | 80 | 20.0 |
| CXS-A25-04-X | 25.00 | 4.00 | 110.00 | 24.00 | 24.0 | 24.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A25-05-X | 25.00 | 5.00 | 110.00 | 24.00 | 25.0 | 25.0 | 1 | 14.5 | 80 | 20.0 |
| CXS-A25-06-X | 25.00 | 6.00 | 110.00 | 24.00 | 26.5 | 26.5 | 1 | 16.5 | 80 | 20.0 |
| CXS-A25-07-X | 25.00 | 7.00 | 110.00 | 24.00 | 26.0 | 26.0 | 1 | 16.5 | 80 | 20.0 |
| CXS-E12-04-X | 12.00 | 4.00 | 103.00 | 11.00 | 53.0 | 53.0 | 1 | 12.0 | 80 | 8.0 |
| CXS-E12-05-X | 12.00 | 5.00 | 108.00 | 24.00 | 58.0 | 58.0 | 1 | 12.0 | 80 | 8.0 |
Neutral version
Imperial (inch)
| Ordering code | DCONMS [inch] | DCONWS [inch] | LF1 [inch] | H [inch] | OHX [inch] | CNSC | OHN [inch] | BD1 [inch] | CP [lbf/in2] | TQ [ft] |
| CXS-A0500-04-X | 0.500 | 0.157 | 2.756 | 0.461 | 0.866 | 1 | 0.866 | 0.571 | 1160 | 14.8 |
| CXS-A0500-05-X | 0.500 | 0.197 | 2.756 | 0.461 | 0.906 | 1 | 0.906 | 0.571 | 1160 | 14.8 |
| CXS-A0625-04-X | 0.625 | 0.157 | 2.953 | 0.586 | 0.866 | 1 | 0.866 | 0.571 | 1160 | 14.8 |
| CXS-A0625-05-X | 0.625 | 0.197 | 2.953 | 0.586 | 0.906 | 1 | 0.906 | 0.571 | 1160 | 14.8 |
| CXS-A0625-06-X | 0.625 | 0.236 | 2.953 | 0.586 | 1.043 | 1 | 1.043 | 0.650 | 1160 | 14.8 |
| CXS-A0625-07-X | 0.625 | 0.276 | 2.953 | 0.586 | 1.043 | 1 | 1.043 | 0.650 | 1160 | 14.8 |
| CXS-A0750-04-X | 0.750 | 0.157 | 4.331 | 0.041 | 0.866 | 1 | 0.866 | 0.571 | 1160 | 14.8 |
| CXS-A0750-05-X | 0.750 | 0.197 | 4.331 | 0.711 | 1.024 | 1 | 1.024 | 0.571 | 1160 | 14.8 |
Neutral version
