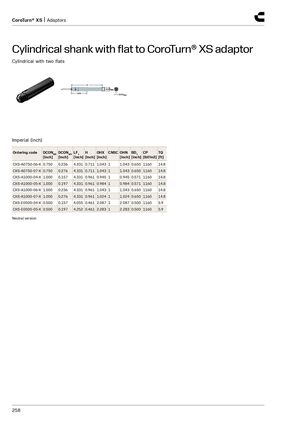

Cylindrical shank with flat to CoroTurn® XS adaptor
Cylindrical with two flats
Imperial (inch)
| Ordering code | DCONMS [inch] | DCONWS [inch] | LF1 [inch] | H [inch] | OHX [inch] | CNSC | OHN [inch] | BD1 [inch] | CP [lbf/in2] | TQ [ft] |
| CXS-A0750-06-X | 0.750 | 0.236 | 4.331 | 0.711 | 1.043 | 1 | 1.043 | 0.650 | 1160 | 14.8 |
| CXS-A0750-07-X | 0.750 | 0.276 | 4.331 | 0.711 | 1.043 | 1 | 1.043 | 0.650 | 1160 | 14.8 |
| CXS-A1000-04-X | 1.000 | 0.157 | 4.331 | 0.961 | 0.945 | 1 | 0.945 | 0.571 | 1160 | 14.8 |
| CXS-A1000-05-X | 1.000 | 0.197 | 4.331 | 0.961 | 0.984 | 1 | 0.984 | 0.571 | 1160 | 14.8 |
| CXS-A1000-06-X | 1.000 | 0.236 | 4.331 | 0.961 | 1.043 | 1 | 1.043 | 0.650 | 1160 | 14.8 |
| CXS-A1000-07-X | 1.000 | 0.276 | 4.331 | 0.961 | 1.024 | 1 | 1.024 | 0.650 | 1160 | 14.8 |
| CXS-E0500-04-X | 0.500 | 0.157 | 4.055 | 0.461 | 2.087 | 1 | 2.087 | 0.500 | 1160 | 5.9 |
| CXS-E0500-05-X | 0.500 | 0.197 | 4.252 | 0.461 | 2.283 | 1 | 2.283 | 0.500 | 1160 | 5.9 |
Neutral version
