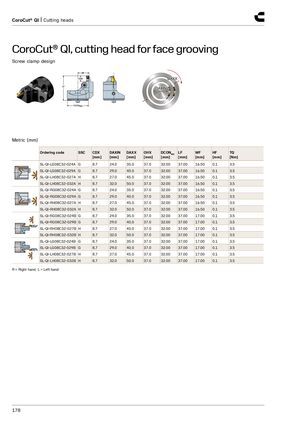

CoroCut® QI, cutting head for face grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DAXIN [mm] | DAXX [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| SL-QI-LG08C32-024A | G | 8.7 | 24.0 | 35.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-LG08C32-029A | G | 8.7 | 29.0 | 40.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-LH08C32-027A | H | 8.7 | 27.0 | 45.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-LH08C32-032A | H | 8.7 | 32.0 | 50.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-RG08C32-024A | G | 8.7 | 24.0 | 35.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-RG08C32-029A | G | 8.7 | 29.0 | 40.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-RH08C32-027A | H | 8.7 | 27.0 | 45.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-RH08C32-032A | H | 8.7 | 32.0 | 50.0 | 37.0 | 32.00 | 37.00 | 16.50 | 0.1 | 3.5 |
| SL-QI-RG08C32-024B | G | 8.7 | 24.0 | 35.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-RG08C32-029B | G | 8.7 | 29.0 | 40.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-RH08C32-027B | H | 8.7 | 27.0 | 45.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-RH08C32-032B | H | 8.7 | 32.0 | 50.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-LG08C32-024B | G | 8.7 | 24.0 | 35.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-LG08C32-029B | G | 8.7 | 29.0 | 40.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-LH08C32-027B | H | 8.7 | 27.0 | 45.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
| SL-QI-LH08C32-032B | H | 8.7 | 32.0 | 50.0 | 37.0 | 32.00 | 37.00 | 17.00 | 0.1 | 3.5 |
R = Right hand, L = Left hand
