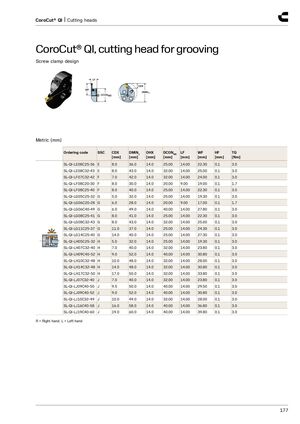

CoroCut® QI, cutting head for grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| SL-QI-LE08C25-36 | E | 8.0 | 36.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-LE08C32-43 | E | 8.0 | 43.0 | 14.0 | 32.00 | 14.00 | 25.00 | 0.1 | 3.0 |
| SL-QI-LF07C32-42 | F | 7.0 | 42.0 | 14.0 | 32.00 | 14.00 | 24.00 | 0.1 | 3.0 |
| SL-QI-LF08C20-30 | F | 8.0 | 30.0 | 14.0 | 20.00 | 9.00 | 19.00 | 0.1 | 1.7 |
| SL-QI-LF08C25-40 | F | 8.0 | 40.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-LG05C25-32 | G | 5.0 | 32.0 | 14.0 | 25.00 | 14.00 | 19.30 | 0.1 | 3.0 |
| SL-QI-LG06C20-28 | G | 6.0 | 28.0 | 14.0 | 20.00 | 9.00 | 17.00 | 0.1 | 1.7 |
| SL-QI-LG06C40-49 | G | 6.0 | 49.0 | 14.0 | 40.00 | 14.00 | 27.80 | 0.1 | 3.0 |
| SL-QI-LG08C25-41 | G | 8.0 | 41.0 | 14.0 | 25.00 | 14.00 | 22.30 | 0.1 | 3.0 |
| SL-QI-LG08C32-43 | G | 8.0 | 43.0 | 14.0 | 32.00 | 14.00 | 25.00 | 0.1 | 3.0 |
| SL-QI-LG11C25-37 | G | 11.0 | 37.0 | 14.0 | 25.00 | 14.00 | 24.30 | 0.1 | 3.0 |
| SL-QI-LG14C25-40 | G | 14.0 | 40.0 | 14.0 | 25.00 | 14.00 | 27.30 | 0.1 | 3.0 |
| SL-QI-LH05C25-32 | H | 5.0 | 32.0 | 14.0 | 25.00 | 14.00 | 19.30 | 0.1 | 3.0 |
| SL-QI-LH07C32-40 | H | 7.0 | 40.0 | 14.0 | 32.00 | 14.00 | 23.80 | 0.1 | 3.0 |
| SL-QI-LH09C40-52 | H | 9.0 | 52.0 | 14.0 | 40.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-LH10C32-48 | H | 10.0 | 48.0 | 14.0 | 32.00 | 14.00 | 28.00 | 0.1 | 3.0 |
| SL-QI-LH14C32-48 | H | 14.0 | 48.0 | 14.0 | 32.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-LH17C32-50 | H | 17.0 | 50.0 | 14.0 | 32.00 | 14.00 | 33.80 | 0.1 | 3.0 |
| SL-QI-LJ07C32-40 | J | 7.0 | 40.0 | 14.0 | 32.00 | 14.00 | 23.80 | 0.1 | 3.0 |
| SL-QI-LJ09C40-50 | J | 9.5 | 50.0 | 14.0 | 40.00 | 14.00 | 29.50 | 0.1 | 3.0 |
| SL-QI-LJ09C40-52 | J | 9.0 | 52.0 | 14.0 | 40.00 | 14.00 | 30.80 | 0.1 | 3.0 |
| SL-QI-LJ10C32-49 | J | 10.0 | 49.0 | 14.0 | 32.00 | 14.00 | 28.00 | 0.1 | 3.0 |
| SL-QI-LJ16C40-58 | J | 16.0 | 58.0 | 14.0 | 40.00 | 14.00 | 36.80 | 0.1 | 3.0 |
| SL-QI-LJ19C40-60 | J | 19.0 | 60.0 | 14.0 | 40.00 | 14.00 | 39.80 | 0.1 | 3.0 |
R = Right hand, L = Left hand
