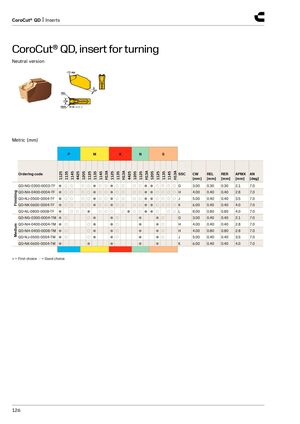

CoroCut® QD, insert for turning
Neutral version
APM X
Metric (mm)
| P | M | K | N | S | ||||||||||
| Ordering code | 1125 1135 | 1145 4425 | 1205 1125 1135 1145 | H13A 1125 1135 | H13A 4425 | 1205 | 1125 H13A | 1205 1125 1135 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | APMX [mm] | AN [deg] |
| QD-NG-0300-0003-TF | ●○ | ○ | ○○●○ | ○●○ | ○ | ○ | ○● | ●○○○ | ○G | 3.00 | 0.30 | 0.30 | 2.1 | 7.0 |
| ing QD-NH-0400-0004-TF | ●○ | ○ | ○○●○ | ○●○ | ○ | ○ | ○● | ●○○○ | ○H | 4.00 | 0.40 | 0.40 | 2.8 | 7.0 |
| nish QD-NJ-0500-0004-TF | ●○ | ○ | ○○●○ | ○●○ | ○ | ○ | ○● | ●○○○ | ○J | 5.00 | 0.40 | 0.40 | 3.5 | 7.0 |
| Fi QD-NK-0600-0004-TF | ●○ | ○ | ○○●○ | ○●○ | ○ | ○ | ○● | ●○○○ | ○K | 6.00 | 0.40 | 0.40 | 4.0 | 7.0 |
| QD-NL-0800-0008-TF | ● | ○○ | ○● ○ | ○○ | ○● | ○ | ○● | ●○ ○ | ○L | 8.00 | 0.80 | 0.80 | 4.0 | 7.0 |
| QD-NG-0300-0004-TM | ●○ | ○● | ●○ | ● | ●○ | G | 3.00 | 0.40 | 0.40 | 2.1 | 7.0 | |||
| um QD-NH-0400-0004-TM | ●○ | ○● | ●○ | ● | ●○ | H | 4.00 | 0.40 | 0.40 | 2.8 | 7.0 | |||
| edi QD-NH-0400-0008-TM | ●○ | ○● | ●○ | ● | ●○ | H | 4.00 | 0.80 | 0.80 | 2.8 | 7.0 | |||
| M QD-NJ-0500-0004-TM | ●○ | ○● | ●○ | ● | ●○ | J | 5.00 | 0.40 | 0.40 | 3.5 | 7.0 | |||
| QD-NK-0600-0004-TM | ● | ● | ● | ● | ● | K | 6.00 | 0.40 | 0.40 | 4.0 | 7.0 |
- = First choice ○ = Good choice
