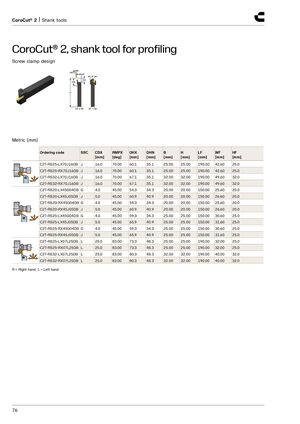

CoroCut® 2, shank tool for profiling
Screw clamp design
RMPX WF HF CDX OHX
LF
B H
Metric (mm)
| Ordering code | SSC | CDX [mm] | RMPX [deg] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| C2T-RS25-LX70J16DB | J | 16.0 | 70.00 | 60.1 | 35.1 | 25.00 | 25.00 | 190.00 | 42.60 | 25.0 |
| C2T-RS25-RX70J16DB | J | 16.0 | 70.00 | 60.1 | 35.1 | 25.00 | 25.00 | 190.00 | 42.60 | 25.0 |
| C2T-RS32-LX70J16DB | J | 16.0 | 70.00 | 67.1 | 35.1 | 32.00 | 32.00 | 190.00 | 49.60 | 32.0 |
| C2T-RS32-RX70J16DB | J | 16.0 | 70.00 | 67.1 | 35.1 | 32.00 | 32.00 | 190.00 | 49.60 | 32.0 |
| C2T-RS20-LX45G04DB | G | 4.0 | 45.00 | 54.3 | 34.3 | 20.00 | 20.00 | 150.00 | 25.60 | 20.0 |
| C2T-RS20-LX45J05DB | J | 5.0 | 45.00 | 60.9 | 40.9 | 20.00 | 20.00 | 150.00 | 26.60 | 20.0 |
| C2T-RS20-RX45G04DB | G | 4.0 | 45.00 | 54.3 | 34.3 | 20.00 | 20.00 | 150.00 | 25.60 | 20.0 |
| C2T-RS20-RX45J05DB | J | 5.0 | 45.00 | 60.9 | 40.9 | 20.00 | 20.00 | 150.00 | 26.60 | 20.0 |
| C2T-RS25-LX45G04DB | G | 4.0 | 45.00 | 59.3 | 34.3 | 25.00 | 25.00 | 150.00 | 30.60 | 25.0 |
| C2T-RS25-LX45J05DB | J | 5.0 | 45.00 | 65.9 | 40.9 | 25.00 | 25.00 | 150.00 | 31.60 | 25.0 |
| C2T-RS25-RX45G04DB | G | 4.0 | 45.00 | 59.3 | 34.3 | 25.00 | 25.00 | 150.00 | 30.60 | 25.0 |
| C2T-RS25-RX45J05DB | J | 5.0 | 45.00 | 65.9 | 40.9 | 25.00 | 25.00 | 150.00 | 31.60 | 25.0 |
| C2T-RS25-LX07L25DB | L | 25.0 | 83.00 | 73.3 | 48.3 | 25.00 | 25.00 | 190.00 | 32.00 | 25.0 |
| C2T-RS25-RX07L25DB | L | 25.0 | 83.00 | 73.3 | 48.3 | 25.00 | 25.00 | 190.00 | 32.00 | 25.0 |
| C2T-RS32-LX07L25DB | L | 25.0 | 83.00 | 80.3 | 48.3 | 32.00 | 32.00 | 190.00 | 40.00 | 32.0 |
| C2T-RS32-RX07L25DB | L | 25.0 | 83.00 | 80.3 | 48.3 | 32.00 | 32.00 | 190.00 | 40.00 | 32.0 |
R = Right hand, L = Left hand
