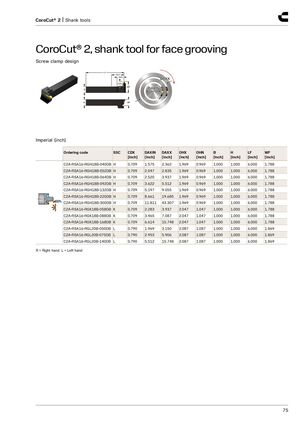

CoroCut® 2, shank tool for face grooving
Screw clamp design
LF OHX OHN
CDX WF B
H HF
Imperial (inch)
| Ordering code SSC | CDX [inch] | DAXIN [inch] | DAXX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] |
| C2A-RSA16-RGH18B-040DB H | 0.709 | 1.575 | 2.362 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-052DB H | 0.709 | 2.047 | 2.835 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-064DB H | 0.709 | 2.520 | 3.937 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-092DB H | 0.709 | 3.622 | 5.512 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-132DB H | 0.709 | 5.197 | 9.055 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-220DB H | 0.709 | 8.661 | 19.685 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGH18B-300DB H | 0.709 | 11.811 | 43.307 | 1.969 | 0.969 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGK18B-058DB K | 0.709 | 2.283 | 3.937 | 2.047 | 1.047 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGK18B-088DB K | 0.709 | 3.465 | 7.087 | 2.047 | 1.047 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGK18B-168DB K | 0.709 | 6.614 | 15.748 | 2.047 | 1.047 | 1.000 | 1.000 | 6.000 | 1.788 |
| C2A-RSA16-RGL20B-050DB L | 0.790 | 1.969 | 3.150 | 2.087 | 1.087 | 1.000 | 1.000 | 6.000 | 1.869 |
| C2A-RSA16-RGL20B-075DB L | 0.790 | 2.953 | 5.906 | 2.087 | 1.087 | 1.000 | 1.000 | 6.000 | 1.869 |
| C2A-RSA16-RGL20B-140DB L | 0.790 | 5.512 | 15.748 | 2.087 | 1.087 | 1.000 | 1.000 | 6.000 | 1.869 |
R = Right hand, L = Left hand
