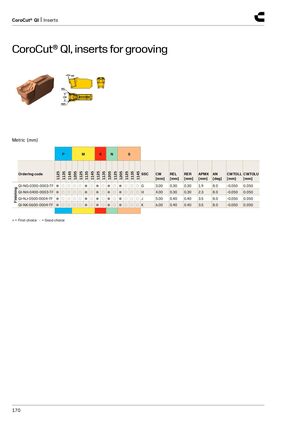

CoroCut® QI, inserts for grooving
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1125 1135 | 1145 | 1205 1125 | 1135 1145 | 1125 1135 | 1205 1125 | 1205 1125 1135 | 1145 SSC | CW [mm] | REL [mm] | RER [mm] | APMX [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | |
| g QI-NG-0300-0003-TF | ●○ | ○ | ○○ | ●○ | ●○ | ●○ | ●○○ | ○G | 3.00 | 0.30 | 0.30 | 1.9 | 8.0 | -0.050 | 0.050 | |
| shin QI-NH-0400-0003-TF | ●○ | ○ | ○○ | ●○ | ●○ | ●○ | ●○○ | ○H | 4.00 | 0.30 | 0.30 | 2.3 | 8.0 | -0.050 | 0.050 | |
| ini QI-NJ-0500-0004-TF | ●○ | ○ | ○○ | ●○ | ●○ | ●○ | ●○○ | ○J | 5.00 | 0.40 | 0.40 | 3.5 | 8.0 | -0.050 | 0.050 | |
| F QI-NK-0600-0004-TF | ●○ | ○ | ○○ | ●○ | ●○ | ●○ | ●○○ | ○K | 6.00 | 0.40 | 0.40 | 3.5 | 8.0 | -0.050 | 0.050 |
- = First choice ○ = Good choice
