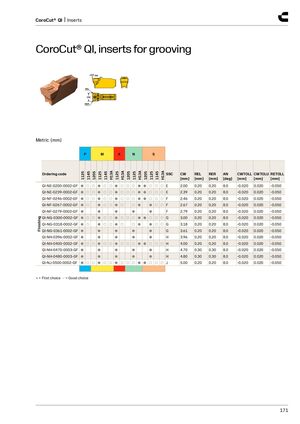

CoroCut® QI, inserts for grooving
Metric (mm)
| P | M | K | N | S | ||||||||||||
| Ordering code | 1125 1145 | 1205 1125 | 1145 | H13A | 1125 | H13A | 1205 1125 H13A | 1205 1125 1145 | H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOLL [mm] | CWTOLU [mm] | RETOLL [mm] |
| QI-NE-0200-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○E | 2.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| QI-NE-0239-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○E | 2.39 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| QI-NF-0246-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○F | 2.46 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| QI-NF-0267-0002-GF | ●○ | ●○ | ○ | ●○ | ○● | ●○ | ○F | 2.67 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| QI-NF-0279-0002-GF | ● | ● | ● | ● | ● | F | 2.79 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | |||
| ing QI-NG-0300-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○G | 3.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| nish QI-NG-0318-0002-GF | ●○ | ●○ | ○ | ●○ | ○● | ●○ | ○G | 3.18 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| Fi QI-NG-0361-0002-GF | ● | ● | ● | ● | ● | G | 3.61 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | |||
| QI-NH-0396-0002-GF | ● | ● | ● | ● | ● | H | 3.96 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | |||
| QI-NH-0400-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○H | 4.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | ||
| QI-NH-0470-0003-GF | ● | ● | ● | ● | ● | H | 4.70 | 0.30 | 0.30 | 8.0 | -0.020 | 0.020 | -0.050 | |||
| QI-NH-0480-0003-GF | ● | ● | ● | ● | ● | H | 4.80 | 0.30 | 0.30 | 8.0 | -0.020 | 0.020 | -0.050 | |||
| QI-NJ-0500-0002-GF | ●○ | ○●○ | ○ | ●○ | ○○● | ●○○ | ○J | 5.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 |
- = First choice ○ = Good choice
