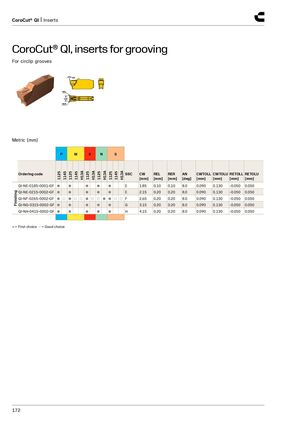

CoroCut® QI, inserts for grooving
For circlip grooves
Metric (mm)
| P | M | K | N | S | |||||||||
| Ordering code | 1125 1145 | 1125 1145 | H13A 1125 | H13A 1125 | H13A 1125 1145 H13A SSC | CW [mm] | REL [mm] | RER [mm] | AN [deg] | CWTOL [mm] | L CWTOLU [mm] | RETOL [mm] | L RETOLU [mm] |
| QI-NE-0185-0001-GF | ● | ● | ● | ● | ● E | 1.85 | 0.10 | 0.10 | 8.0 | 0.090 | 0.130 | -0.050 | 0.050 |
| ing QI-NE-0215-0002-GF | ● | ● | ● | ● | ● E | 2.15 | 0.20 | 0.20 | 8.0 | 0.090 | 0.130 | -0.050 | 0.050 |
| nish QI-NF-0265-0002-GF | ●○ | ●○○ | ● | ○○ | ●●○○F | 2.65 | 0.20 | 0.20 | 8.0 | 0.090 | 0.130 | -0.050 | 0.050 |
| Fi QI-NG-0315-0002-GF | ● | ● | ● | ● | ● G | 3.15 | 0.20 | 0.20 | 8.0 | 0.090 | 0.130 | -0.050 | 0.050 |
| QI-NH-0415-0002-GF | ● | ● | ● | ● | ● H | 4.15 | 0.20 | 0.20 | 8.0 | 0.090 | 0.130 | -0.050 | 0.050 |
- = First choice ○ = Good choice
