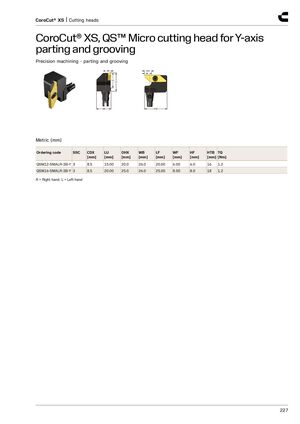

CoroCut® XS, QS™ Micro cutting head for Y-axis
parting and grooving
Precision machining - parting and grooving
WF CDX HF
LU LF
WB HTB
Metric (mm)
| Ordering code SSC | CDX | LU | OHX | WB | LF | WF | HF | HTB | TQ |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | |
| QSM12-SMALR-3B-Y 3 | 8.5 | 15.00 | 20.0 | 26.0 | 20.00 | 6.00 | 6.0 | 16 | 1.2 |
| QSM16-SMALR-3B-Y 3 | 8.5 | 20.00 | 25.0 | 26.0 | 25.00 | 8.00 | 8.0 | 18 | 1.2 |
R = Right hand, L = Left hand
