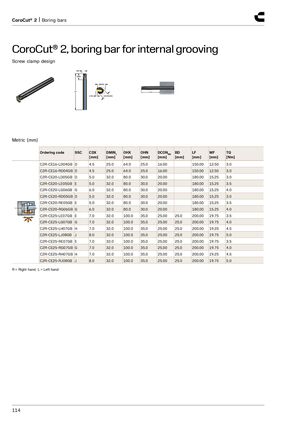

CoroCut® 2, boring bar for internal grooving
Screw clamp design
WF OHN
DMIN1
LF OHX CDX DCON MS
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | BD [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| C2R-CE16-LD04GB | D | 4.5 | 25.0 | 64.0 | 25.0 | 16.00 | 150.00 | 12.50 | 3.0 | |
| C2R-CE16-RD04GB | D | 4.5 | 25.0 | 64.0 | 25.0 | 16.00 | 150.00 | 12.50 | 3.0 | |
| C2R-CE20-LD05GB | D | 5.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 3.0 | |
| C2R-CE20-LE05GB | E | 5.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 3.5 | |
| C2R-CE20-LG06GB | G | 6.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 4.0 | |
| C2R-CE20-RD05GB | D | 5.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 3.0 | |
| C2R-CE20-RE05GB | E | 5.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 3.5 | |
| C2R-CE20-RG06GB | G | 6.0 | 32.0 | 80.0 | 30.0 | 20.00 | 180.00 | 15.25 | 4.0 | |
| C2R-CE25-LE07GB | E | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 3.5 |
| C2R-CE25-LG07GB | G | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 4.0 |
| C2R-CE25-LH07GB | H | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.25 | 4.5 |
| C2R-CE25-LJ08GB | J | 8.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 5.0 |
| C2R-CE25-RE07GB | E | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 3.5 |
| C2R-CE25-RG07GB | G | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 4.0 |
| C2R-CE25-RH07GB | H | 7.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.25 | 4.5 |
| C2R-CE25-RJ08GB | J | 8.0 | 32.0 | 100.0 | 35.0 | 25.00 | 25.0 | 200.00 | 19.75 | 5.0 |
R = Right hand, L = Left hand
