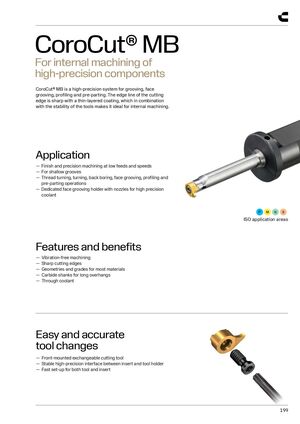

CoroCut® MB
CoroCut® MB
For internal machining of
high-precision components
CoroCut® MB is a high-precision system for grooving, face grooving, profiling and pre-parting. The edge line of the cutting edge is sharp with a thin-layered coating, which in combination with the stability of the tools makes it ideal for internal machining.
Application
— Finish and precision machining at low feeds and speeds — For shallow grooves — Thread turning, turning, back boring, face grooving, profiling and pre-parting operations — Dedicated face grooving holder with nozzles for high precision coolant
ISO application areas
Features and benefits
— Vibration-free machining — Sharp cutting edges — Geometries and grades for most materials — Carbide shanks for long overhangs — Through coolant
Easy and accurate
tool changes
— Front-mounted exchangeable cutting tool — Stable high-precision interface between insert and tool holder — Fast set-up for both tool and insert
