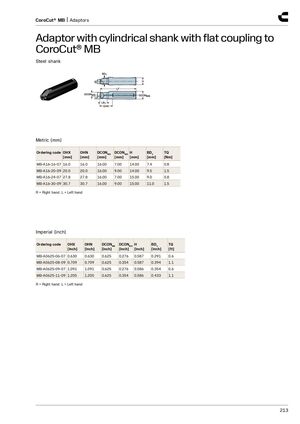

CoroCut® MB
Steel shank
Metric (mm)
| Ordering code | OHX [mm] | OHN [mm] | DCONMS [mm] | DCONW [mm] | S H [mm] | BD1 [mm] | TQ [Nm] |
| MB-A16-16-07 | 16.0 | 16.0 | 16.00 | 7.00 | 14.00 | 7.4 | 0.8 |
| MB-A16-20-09 | 20.0 | 20.0 | 16.00 | 9.00 | 14.00 | 9.5 | 1.5 |
| MB-A16-24-07 | 27.8 | 27.8 | 16.00 | 7.00 | 15.00 | 9.0 | 0.8 |
| MB-A16-30-09 | 30.7 | 30.7 | 16.00 | 9.00 | 15.00 | 11.0 | 1.5 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | OHX [inch] | OHN [inch] | DCONMS [inch] | DCONW [inch] | S H [inch] | BD1 [inch] | TQ [ft] |
| MB-A0625-06-07 | 0.630 | 0.630 | 0.625 | 0.276 | 0.587 | 0.291 | 0.6 |
| MB-A0625-08-09 | 0.709 | 0.709 | 0.625 | 0.354 | 0.587 | 0.394 | 1.1 |
| MB-A0625-09-07 | 1.091 | 1.091 | 0.625 | 0.276 | 0.586 | 0.354 | 0.6 |
| MB-A0625-11-09 | 1.205 | 1.205 | 0.625 | 0.354 | 0.586 | 0.433 | 1.1 |
R = Right hand, L = Left hand
