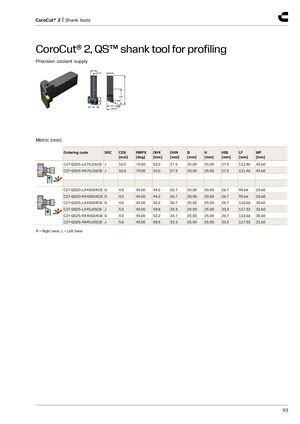

CoroCut® 2, QS™ shank tool for profiling
Precision coolant supply
H CNT B
LF
OHX HBL CDX WF HF RMPX
Metric (mm)
| Ordering code | SSC | CDX [mm] | RMPX [deg] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | HBL [mm] | LF [mm] | WF [mm] |
| C2T-QS25-LX70J16CB | J | 16.0 | 70.00 | 53.0 | 27.5 | 25.00 | 25.00 | 27.5 | 111.46 | 42.60 |
| C2T-QS25-RX70J16CB | J | 16.0 | 70.00 | 53.0 | 27.5 | 25.00 | 25.00 | 27.5 | 111.46 | 42.60 |
| C2T-QS20-LX45G04CB | G | 4.0 | 45.00 | 44.2 | 26.7 | 20.00 | 20.00 | 26.7 | 95.66 | 25.60 |
| C2T-QS20-RX45G04CB | G | 4.0 | 45.00 | 44.2 | 26.7 | 20.00 | 20.00 | 26.7 | 95.66 | 25.60 |
| C2T-QS25-LX45G04CB | G | 4.0 | 45.00 | 52.2 | 26.7 | 25.00 | 25.00 | 26.7 | 110.66 | 30.60 |
| C2T-QS25-LX45J05CB | J | 5.0 | 45.00 | 58.8 | 33.3 | 25.00 | 25.00 | 33.3 | 117.33 | 31.60 |
| C2T-QS25-RX45G04CB | G | 4.0 | 45.00 | 52.2 | 26.7 | 25.00 | 25.00 | 26.7 | 110.66 | 30.60 |
| C2T-QS25-RX45J05CB | J | 5.0 | 45.00 | 58.8 | 33.3 | 25.00 | 25.00 | 33.3 | 117.33 | 31.60 |
R = Right hand, L = Left hand
