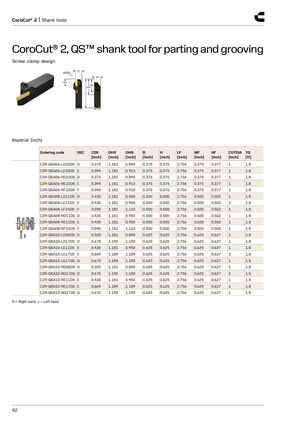

CoroCut® 2, QS™ shank tool for parting and grooving
Screw clamp design
HF CUTDIA WF CDX OHN OHX LF
H B
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| C2R-QSA06-LD10DS | D | 0.375 | 1.181 | 0.895 | 0.375 | 0.375 | 2.756 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-QSA06-LE10DS | E | 0.394 | 1.181 | 0.913 | 0.375 | 0.375 | 2.756 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-QSA06-RD10DS | D | 0.375 | 1.181 | 0.895 | 0.375 | 0.375 | 2.756 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-QSA06-RE10DS | E | 0.394 | 1.181 | 0.913 | 0.375 | 0.375 | 2.756 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-QSA06-RF10DS | F | 0.390 | 1.181 | 0.910 | 0.375 | 0.375 | 2.756 | 0.375 | 0.377 | 1 | 1.8 |
| C2R-QSA08-LD11DS | D | 0.430 | 1.181 | 0.950 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA08-LE11DS | E | 0.430 | 1.181 | 0.950 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA08-LF15DS | F | 0.590 | 1.181 | 1.110 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA08-RD11DS | D | 0.430 | 1.181 | 0.950 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA08-RE11DS | E | 0.430 | 1.181 | 0.950 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA08-RF15DS | F | 0.590 | 1.181 | 1.110 | 0.500 | 0.500 | 2.756 | 0.500 | 0.502 | 1 | 1.8 |
| C2R-QSA10-LD08DS | D | 0.320 | 1.181 | 0.840 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-LD17DS | D | 0.670 | 1.190 | 1.190 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-LE11DS | E | 0.430 | 1.181 | 0.950 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-LE17DS | E | 0.669 | 1.189 | 1.189 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-LG17DS | G | 0.670 | 1.190 | 1.190 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-RD08DS | D | 0.320 | 1.181 | 0.840 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-RD17DS | D | 0.670 | 1.190 | 1.190 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-RE11DS | E | 0.430 | 1.181 | 0.950 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-RE17DS | E | 0.669 | 1.189 | 1.189 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
| C2R-QSA10-RG17DS | G | 0.670 | 1.190 | 1.190 | 0.625 | 0.625 | 2.756 | 0.625 | 0.627 | 1 | 1.8 |
R = Right hand, L = Left hand
