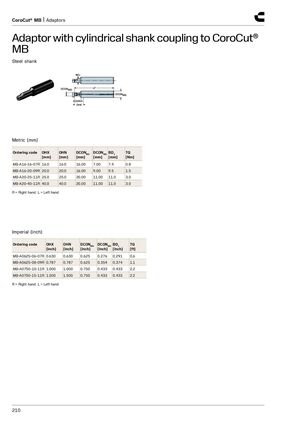

MB
Steel shank
Metric (mm)
| Ordering code | OHX [mm] | OHN [mm] | DCONMS [mm] | DCONW [mm] | S BD1 [mm] | TQ [Nm] |
| MB-A16-16-07R | 16.0 | 16.0 | 16.00 | 7.00 | 7.4 | 0.8 |
| MB-A16-20-09R | 20.0 | 20.0 | 16.00 | 9.00 | 9.5 | 1.5 |
| MB-A20-25-11R | 25.0 | 25.0 | 20.00 | 11.00 | 11.0 | 3.0 |
| MB-A20-40-11R | 40.0 | 40.0 | 20.00 | 11.00 | 11.0 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | OHX [inch] | OHN [inch] | DCONMS [inch] | DCONWS [inch] | BD1 [inch] | TQ [ft] |
| MB-A0625-06-07R | 0.630 | 0.630 | 0.625 | 0.276 | 0.291 | 0.6 |
| MB-A0625-08-09R | 0.787 | 0.787 | 0.625 | 0.354 | 0.374 | 1.1 |
| MB-A0750-10-11R | 1.000 | 1.000 | 0.750 | 0.433 | 0.433 | 2.2 |
| MB-A0750-15-11R | 1.500 | 1.500 | 0.750 | 0.433 | 0.433 | 2.2 |
R = Right hand, L = Left hand
