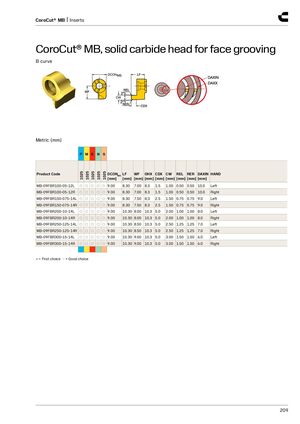

CoroCut® MB, solid carbide head for face grooving
B curve
Metric (mm)
| P | M | K | N | S | |||||||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND | ||
| MB-09FBR100-05-12L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.00 | 8.3 | 1.5 | 1.00 | 0.50 | 0.50 | 10.0 | Left | ||
| MB-09FBR100-05-12R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.00 | 8.3 | 1.5 | 1.00 | 0.50 | 0.50 | 10.0 | Right | ||
| MB-09FBR150-075-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.50 | 8.3 | 2.5 | 1.50 | 0.75 | 0.75 | 9.0 | Left | ||
| MB-09FBR150-075-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 7.50 | 8.3 | 2.5 | 1.50 | 0.75 | 0.75 | 9.0 | Right | ||
| MB-09FBR200-10-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.00 | 10.3 | 5.0 | 2.00 | 1.00 | 1.00 | 8.0 | Left | ||
| MB-09FBR200-10-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.00 | 10.3 | 5.0 | 2.00 | 1.00 | 1.00 | 8.0 | Right | ||
| MB-09FBR250-125-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.50 | 10.3 | 5.0 | 2.50 | 1.25 | 1.25 | 7.0 | Left | ||
| MB-09FBR250-125-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 8.50 | 10.3 | 5.0 | 2.50 | 1.25 | 1.25 | 7.0 | Right | ||
| MB-09FBR300-15-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 1.50 | 1.50 | 6.0 | Left | ||
| MB-09FBR300-15-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 1.50 | 1.50 | 6.0 | Right |
- = First choice = Good choice
