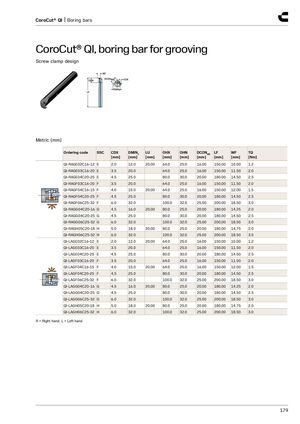

CoroCut® QI, boring bar for grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | LU [mm] | OHX [mm] | OHN [mm] | DCONMS [mm] | LF [mm] | WF [mm] | TQ [Nm] |
| QI-RAGE02C16-12 | E | 2.0 | 12.0 | 20.00 | 64.0 | 25.0 | 16.00 | 150.00 | 10.00 | 1.2 |
| QI-RAGE03C16-20 | E | 3.5 | 20.0 | 64.0 | 25.0 | 16.00 | 150.00 | 11.50 | 2.0 | |
| QI-RAGE04C20-25 | E | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-RAGF03C16-20 | F | 3.5 | 20.0 | 64.0 | 25.0 | 16.00 | 150.00 | 11.50 | 2.0 | |
| QI-RAGF04C16-15 | F | 4.0 | 15.0 | 20.00 | 64.0 | 25.0 | 16.00 | 150.00 | 12.00 | 1.5 |
| QI-RAGF04C20-25 | F | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-RAGF06C25-32 | F | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 | |
| QI-RAGG04C20-16 | G | 4.5 | 16.0 | 20.00 | 80.0 | 25.0 | 20.00 | 180.00 | 14.25 | 2.0 |
| QI-RAGG04C20-25 | G | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-RAGG06C25-32 | G | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 | |
| QI-RAGH05C20-18 | H | 5.0 | 18.0 | 20.00 | 80.0 | 25.0 | 20.00 | 180.00 | 14.75 | 2.0 |
| QI-RAGH06C25-32 | H | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 | |
| QI-LAGE02C16-12 | E | 2.0 | 12.0 | 20.00 | 64.0 | 25.0 | 16.00 | 150.00 | 10.00 | 1.2 |
| QI-LAGE03C16-20 | E | 3.5 | 20.0 | 64.0 | 25.0 | 16.00 | 150.00 | 11.50 | 2.0 | |
| QI-LAGE04C20-25 | E | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-LAGF03C16-20 | F | 3.5 | 20.0 | 64.0 | 25.0 | 16.00 | 150.00 | 11.50 | 2.0 | |
| QI-LAGF04C16-15 | F | 4.0 | 15.0 | 20.00 | 64.0 | 25.0 | 16.00 | 150.00 | 12.00 | 1.5 |
| QI-LAGF04C20-25 | F | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-LAGF06C25-32 | F | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 | |
| QI-LAGG04C20-16 | G | 4.5 | 16.0 | 20.00 | 80.0 | 25.0 | 20.00 | 180.00 | 14.25 | 2.0 |
| QI-LAGG04C20-25 | G | 4.5 | 25.0 | 80.0 | 30.0 | 20.00 | 180.00 | 14.50 | 2.5 | |
| QI-LAGG06C25-32 | G | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 | |
| QI-LAGH05C20-18 | H | 5.0 | 18.0 | 20.00 | 80.0 | 25.0 | 20.00 | 180.00 | 14.75 | 2.0 |
| QI-LAGH06C25-32 | H | 6.0 | 32.0 | 100.0 | 32.0 | 25.00 | 200.00 | 18.50 | 3.0 |
R = Right hand, L = Left hand
