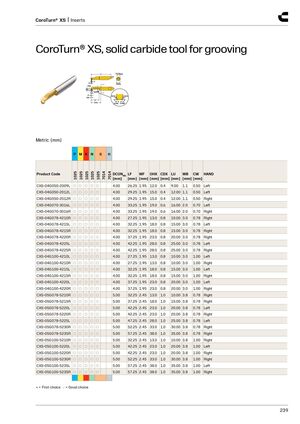

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
| P M | K | N | S | H | ||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | LU [mm] | WB [mm | ] CW [mm] | HAND | |
| CXS-04G050-2009L | ○○ | ○ | ○ | ○ | 4.00 | 26.25 | 1.95 | 12.0 | 0.4 | 9.00 | 1.1 | 0.50 | Left | |
| CXS-04G050-2012L | ○○ | ○ | ○ | ○ | 4.00 | 29.25 | 1.95 | 15.0 | 0.4 | 12.00 | 1.1 | 0.50 | Left | |
| CXS-04G050-2012R | ○○ | ○ | ○ | ○ | 4.00 | 29.25 | 1.95 | 15.0 | 0.4 | 12.00 | 1.1 | 0.50 | Right | |
| CXS-04G070-3016L | ○○ | ○ | ○ | ○ | 4.00 | 33.25 | 1.95 | 19.0 | 0.6 | 16.00 | 2.0 | 0.70 | Left | |
| CXS-04G070-3016R | ○○ | ○ | ○ | ○ | 4.00 | 33.25 | 1.95 | 19.0 | 0.6 | 16.00 | 2.0 | 0.70 | Right | |
| CXS-04G078-4210R | ○○ | ○ | ○ | ○ | 4.00 | 27.25 | 1.95 | 13.0 | 0.8 | 10.00 | 3.0 | 0.78 | Right | |
| CXS-04G078-4215L | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 0.78 | Left | |
| CXS-04G078-4215R | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 0.78 | Right | |
| CXS-04G078-4220R | ○○ | ○ | ○ | ○ | 4.00 | 37.25 | 1.95 | 23.0 | 0.8 | 20.00 | 3.0 | 0.78 | Right | |
| CXS-04G078-4225L | ○○ | ○ | ○ | ○ | 4.00 | 42.25 | 1.95 | 28.0 | 0.8 | 25.00 | 3.0 | 0.78 | Left | |
| CXS-04G078-4225R | ○○ | ○ | ○ | ○ | 4.00 | 42.25 | 1.95 | 28.0 | 0.8 | 25.00 | 3.0 | 0.78 | Right | |
| CXS-04G100-4210L | ○○ | ○ | ○ | ○ | 4.00 | 27.25 | 1.95 | 13.0 | 0.8 | 10.00 | 3.0 | 1.00 | Left | |
| CXS-04G100-4210R | ○○ | ○ | ○ | ○ | 4.00 | 27.25 | 1.95 | 13.0 | 0.8 | 10.00 | 3.0 | 1.00 | Right | |
| CXS-04G100-4215L | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 1.00 | Left | |
| CXS-04G100-4215R | ○○ | ○ | ○ | ○ | 4.00 | 32.25 | 1.95 | 18.0 | 0.8 | 15.00 | 3.0 | 1.00 | Right | |
| CXS-04G100-4220L | ○○ | ○ | ○ | ○ | 4.00 | 37.25 | 1.95 | 23.0 | 0.8 | 20.00 | 3.0 | 1.00 | Left | |
| CXS-04G100-4220R | ○○ | ○ | ○ | ○ | 4.00 | 37.25 | 1.95 | 23.0 | 0.8 | 20.00 | 3.0 | 1.00 | Right | |
| CXS-05G078-5210R | ○○ | ○ | ○ | ○ | 5.00 | 32.25 | 2.45 | 13.0 | 1.0 | 10.00 | 3.8 | 0.78 | Right | |
| CXS-05G078-5215R | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 0.78 | Right | |
| CXS-05G078-5220L | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 0.78 | Left | |
| CXS-05G078-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 0.78 | Right | |
| CXS-05G078-5225L | ○○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 1.0 | 25.00 | 3.8 | 0.78 | Left | |
| CXS-05G078-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 0.78 | Right | |
| CXS-05G078-5235R | ○○ | ○ | ○ | ○ | 5.00 | 57.25 | 2.45 | 38.0 | 1.0 | 35.00 | 3.8 | 0.78 | Right | |
| CXS-05G100-5210R | ○○ | ○ | ○ | ○ | 5.00 | 32.25 | 2.45 | 13.0 | 1.0 | 10.00 | 3.8 | 1.00 | Right | |
| CXS-05G100-5220L | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.00 | Left | |
| CXS-05G100-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.00 | Right | |
| CXS-05G100-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 1.00 | Right | |
| CXS-05G100-5235L | ○○ | ○ | ○ | ○ | 5.00 | 57.25 | 2.45 | 38.0 | 1.0 | 35.00 | 3.8 | 1.00 | Left | |
| CXS-05G100-5235R | ○○ | ○ | ○ | ○ | 5.00 | 57.25 | 2.45 | 38.0 | 1.0 | 35.00 | 3.8 | 1.00 | Right |
