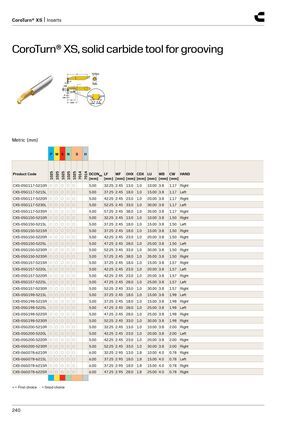

CoroTurn® XS, solid carbide tool for grooving
Metric (mm)
PMKN S H
| Product Code | 25 25 | 25 | 25 | 25 14 | 14 DCONMS | LF | WF | OHX | CDX | LU | WB | CW | HAND | |
| 10 10 | 10 | 1 | 10 70 | 70 [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm | ] [mm] | |||
| CXS-05G117-5210R | ○○ | ○ | ○ | ○ | 5.00 | 32.25 | 2.45 | 13.0 | 1.0 | 10.00 | 3.8 | 1.17 | Right | |
| CXS-05G117-5215L | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.17 | Left | |
| CXS-05G117-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.17 | Right | |
| CXS-05G117-5230L | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 1.17 | Left | |
| CXS-05G117-5235R | ○○ | ○ | ○ | ○ | 5.00 | 57.25 | 2.45 | 38.0 | 1.0 | 35.00 | 3.8 | 1.17 | Right | |
| CXS-05G150-5210R | ○○ | ○ | ○ | ○ | 5.00 | 32.25 | 2.45 | 13.0 | 1.0 | 10.00 | 3.8 | 1.50 | Right | |
| CXS-05G150-5215L | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.50 | Left | |
| CXS-05G150-5215R | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.50 | Right | |
| CXS-05G150-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.50 | Right | |
| CXS-05G150-5225L | ○○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 1.0 | 25.00 | 3.8 | 1.50 | Left | |
| CXS-05G150-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 1.50 | Right | |
| CXS-05G150-5235R | ○○ | ○ | ○ | ○ | 5.00 | 57.25 | 2.45 | 38.0 | 1.0 | 35.00 | 3.8 | 1.50 | Right | |
| CXS-05G157-5215R | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.57 | Right | |
| CXS-05G157-5220L | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.57 | Left | |
| CXS-05G157-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 1.57 | Right | |
| CXS-05G157-5225L | ○○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 1.0 | 25.00 | 3.8 | 1.57 | Left | |
| CXS-05G157-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 1.57 | Right | |
| CXS-05G198-5215L | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.98 | Left | |
| CXS-05G198-5215R | ○○ | ○ | ○ | ○ | 5.00 | 37.25 | 2.45 | 18.0 | 1.0 | 15.00 | 3.8 | 1.98 | Right | |
| CXS-05G198-5225L | ○○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 1.0 | 25.00 | 3.8 | 1.98 | Left | |
| CXS-05G198-5225R | ○○ | ○ | ○ | ○ | 5.00 | 47.25 | 2.45 | 28.0 | 1.0 | 25.00 | 3.8 | 1.98 | Right | |
| CXS-05G198-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 1.98 | Right | |
| CXS-05G200-5210R | ○○ | ○ | ○ | ○ | 5.00 | 32.25 | 2.45 | 13.0 | 1.0 | 10.00 | 3.8 | 2.00 | Right | |
| CXS-05G200-5220L | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 2.00 | Left | |
| CXS-05G200-5220R | ○○ | ○ | ○ | ○ | 5.00 | 42.25 | 2.45 | 23.0 | 1.0 | 20.00 | 3.8 | 2.00 | Right | |
| CXS-05G200-5230R | ○○ | ○ | ○ | ○ | 5.00 | 52.25 | 2.45 | 33.0 | 1.0 | 30.00 | 3.8 | 2.00 | Right | |
| CXS-06G078-6210R | ○○ | ○ | ○ | ○ | 6.00 | 32.25 | 2.95 | 13.0 | 1.8 | 10.00 | 4.0 | 0.78 | Right | |
| CXS-06G078-6215L | ○○ | ○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 0.78 | Left | |
| CXS-06G078-6215R | ○○ | ○ | ○ | ○ | 6.00 | 37.25 | 2.95 | 18.0 | 1.8 | 15.00 | 4.0 | 0.78 | Right | |
| CXS-06G078-6225R | ○○ | ○ | ○ | ○ | 6.00 | 47.25 | 2.95 | 28.0 | 1.8 | 25.00 | 4.0 | 0.78 | Right |
