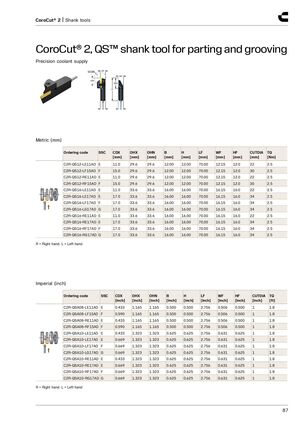

CoroCut® 2, QS™ shank tool for parting and grooving
Precision coolant supply
CUTDIA HF WF CDX OHX LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CUTDIA [mm] | TQ [Nm] |
| C2R-QS12-LE11AD | E | 11.0 | 29.6 | 29.6 | 12.00 | 12.00 | 70.00 | 12.15 | 12.0 | 22 | 2.5 |
| C2R-QS12-LF15AD | F | 15.0 | 29.6 | 29.6 | 12.00 | 12.00 | 70.00 | 12.15 | 12.0 | 30 | 2.5 |
| C2R-QS12-RE11AD | E | 11.0 | 29.6 | 29.6 | 12.00 | 12.00 | 70.00 | 12.15 | 12.0 | 22 | 2.5 |
| C2R-QS12-RF15AD | F | 15.0 | 29.6 | 29.6 | 12.00 | 12.00 | 70.00 | 12.15 | 12.0 | 30 | 2.5 |
| C2R-QS16-LE11AD | E | 11.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 22 | 2.5 |
| C2R-QS16-LE17AD | E | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
| C2R-QS16-LF17AD | F | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
| C2R-QS16-LG17AD | G | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
| C2R-QS16-RE11AD | E | 11.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 22 | 2.5 |
| C2R-QS16-RE17AD | E | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
| C2R-QS16-RF17AD | F | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
| C2R-QS16-RG17AD | G | 17.0 | 33.6 | 33.6 | 16.00 | 16.00 | 70.00 | 16.15 | 16.0 | 34 | 2.5 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| C2R-QSA08-LE11AD | E | 0.433 | 1.165 | 1.165 | 0.500 | 0.500 | 2.756 | 0.506 | 0.500 | 1 | 1.8 |
| C2R-QSA08-LF15AD | F | 0.590 | 1.165 | 1.165 | 0.500 | 0.500 | 2.756 | 0.506 | 0.500 | 1 | 1.8 |
| C2R-QSA08-RE11AD | E | 0.433 | 1.165 | 1.165 | 0.500 | 0.500 | 2.756 | 0.506 | 0.500 | 1 | 1.8 |
| C2R-QSA08-RF15AD | F | 0.590 | 1.165 | 1.165 | 0.500 | 0.500 | 2.756 | 0.506 | 0.500 | 1 | 1.8 |
| C2R-QSA10-LE11AD | E | 0.433 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-LE17AD | E | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-LF17AD | F | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-LG17AD | G | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-RE11AD | E | 0.433 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-RE17AD | E | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-RF17AD | F | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
| C2R-QSA10-RG17AD | G | 0.669 | 1.323 | 1.323 | 0.625 | 0.625 | 2.756 | 0.631 | 0.625 | 1 | 1.8 |
