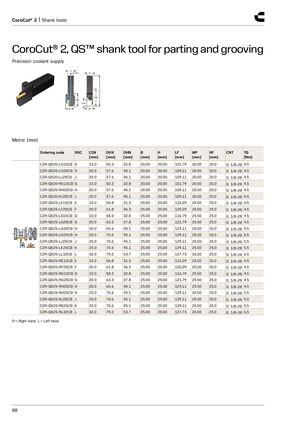

CoroCut® 2, QS™ shank tool for parting and grooving
Precision coolant supply
H CNT B
LF
OHX HBL CDX HF WF
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | OHN [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | CNT | TQ [Nm] |
| C2R-QS20-LG15CB | G | 15.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.79 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS20-LH20CB | H | 20.0 | 57.6 | 40.1 | 20.00 | 20.00 | 109.11 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS20-LJ20CB | J | 20.0 | 57.6 | 40.1 | 20.00 | 20.00 | 109.11 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS20-RG15CB | G | 15.0 | 50.3 | 32.8 | 20.00 | 20.00 | 101.79 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS20-RH20CB | H | 20.0 | 57.6 | 40.1 | 20.00 | 20.00 | 109.11 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS20-RJ20CB | J | 20.0 | 57.6 | 40.1 | 20.00 | 20.00 | 109.11 | 20.50 | 20.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LE15CB | E | 15.0 | 56.8 | 31.3 | 25.00 | 25.00 | 115.29 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LF20CB | F | 20.0 | 61.8 | 36.3 | 25.00 | 25.00 | 120.29 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LG15CB | G | 15.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.79 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LG20CB | G | 20.0 | 63.3 | 37.8 | 25.00 | 25.00 | 121.79 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LH20CB | H | 20.0 | 65.6 | 40.1 | 25.00 | 25.00 | 124.11 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-LH25CB | H | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-LJ25CB | J | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-LK25CB | K | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-LL32CB | L | 32.0 | 79.2 | 53.7 | 25.00 | 25.00 | 137.73 | 26.50 | 25.0 | G 1/8-28 | 6.5 |
| C2R-QS25-RE15CB | E | 15.0 | 56.8 | 31.3 | 25.00 | 25.00 | 115.29 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-RF20CB | F | 20.0 | 61.8 | 36.3 | 25.00 | 25.00 | 120.29 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-RG15CB | G | 15.0 | 58.3 | 32.8 | 25.00 | 25.00 | 116.79 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-RG20CB | G | 20.0 | 63.3 | 37.8 | 25.00 | 25.00 | 121.79 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-RH20CB | H | 20.0 | 65.6 | 40.1 | 25.00 | 25.00 | 124.11 | 25.50 | 25.0 | G 1/8-28 | 4.5 |
| C2R-QS25-RH25CB | H | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-RJ25CB | J | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-RK25CB | K | 25.0 | 70.6 | 45.1 | 25.00 | 25.00 | 129.11 | 25.50 | 25.0 | G 1/8-28 | 5.5 |
| C2R-QS25-RL32CB | L | 32.0 | 79.2 | 53.7 | 25.00 | 25.00 | 137.73 | 26.50 | 25.0 | G 1/8-28 | 6.5 |
R = Right hand, L = Left hand
