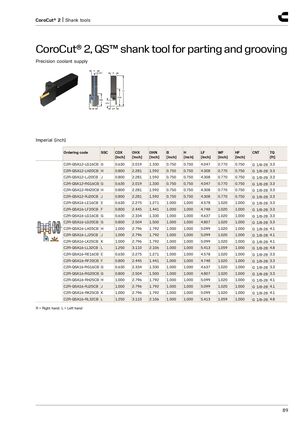

CoroCut® 2, QS™ shank tool for parting and grooving
Precision coolant supply
H CNT B
LF
OHX HBL CDX HF WF
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | OHN [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CNT | TQ [ft] |
| C2R-QSA12-LG16CB | G | 0.630 | 2.019 | 1.330 | 0.750 | 0.750 | 4.047 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA12-LH20CB | H | 0.800 | 2.281 | 1.592 | 0.750 | 0.750 | 4.308 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA12-LJ20CB | J | 0.800 | 2.281 | 1.592 | 0.750 | 0.750 | 4.308 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA12-RG16CB | G | 0.630 | 2.019 | 1.330 | 0.750 | 0.750 | 4.047 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA12-RH20CB | H | 0.800 | 2.281 | 1.592 | 0.750 | 0.750 | 4.308 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA12-RJ20CB | J | 0.800 | 2.281 | 1.592 | 0.750 | 0.750 | 4.308 | 0.770 | 0.750 | G 1/8-28 | 3.3 |
| C2R-QSA16-LE16CB | E | 0.630 | 2.275 | 1.271 | 1.000 | 1.000 | 4.578 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-LF20CB | F | 0.800 | 2.445 | 1.441 | 1.000 | 1.000 | 4.748 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-LG16CB | G | 0.630 | 2.334 | 1.330 | 1.000 | 1.000 | 4.637 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-LG20CB | G | 0.800 | 2.504 | 1.500 | 1.000 | 1.000 | 4.807 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-LH25CB | H | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-LJ25CB | J | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-LK25CB | K | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-LL32CB | L | 1.250 | 3.110 | 2.106 | 1.000 | 1.000 | 5.413 | 1.059 | 1.000 | G 1/8-28 | 4.8 |
| C2R-QSA16-RE16CB | E | 0.630 | 2.275 | 1.271 | 1.000 | 1.000 | 4.578 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-RF20CB | F | 0.800 | 2.445 | 1.441 | 1.000 | 1.000 | 4.748 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-RG16CB | G | 0.630 | 2.334 | 1.330 | 1.000 | 1.000 | 4.637 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-RG20CB | G | 0.800 | 2.504 | 1.500 | 1.000 | 1.000 | 4.807 | 1.020 | 1.000 | G 1/8-28 | 3.3 |
| C2R-QSA16-RH25CB | H | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-RJ25CB | J | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-RK25CB | K | 1.000 | 2.796 | 1.792 | 1.000 | 1.000 | 5.099 | 1.020 | 1.000 | G 1/8-28 | 4.1 |
| C2R-QSA16-RL32CB | L | 1.250 | 3.110 | 2.106 | 1.000 | 1.000 | 5.413 | 1.059 | 1.000 | G 1/8-28 | 4.8 |
R = Right hand, L = Left hand
