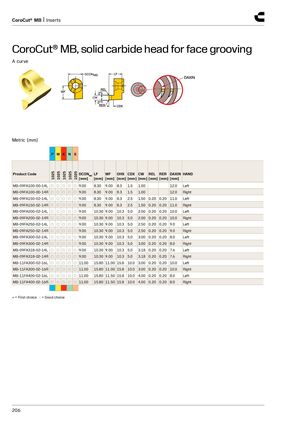

CoroCut® MB, solid carbide head for face grooving
A curve
Metric (mm)
| P | M | K | N | S | |||||||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND | ||
| MB-09FA100-00-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 1.5 | 1.00 | 12.0 | Left | ||||
| MB-09FA100-00-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 1.5 | 1.00 | 12.0 | Right | ||||
| MB-09FA150-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 2.5 | 1.50 | 0.20 | 0.20 | 11.0 | Left | ||
| MB-09FA150-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 2.5 | 1.50 | 0.20 | 0.20 | 11.0 | Right | ||
| MB-09FA200-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.00 | 0.20 | 0.20 | 10.0 | Left | ||
| MB-09FA200-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.00 | 0.20 | 0.20 | 10.0 | Right | ||
| MB-09FA250-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.50 | 0.20 | 0.20 | 9.0 | Left | ||
| MB-09FA250-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.50 | 0.20 | 0.20 | 9.0 | Right | ||
| MB-09FA300-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 0.20 | 0.20 | 8.0 | Left | ||
| MB-09FA300-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 0.20 | 0.20 | 8.0 | Right | ||
| MB-09FA318-02-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.18 | 0.20 | 0.20 | 7.6 | Left | ||
| MB-09FA318-02-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.18 | 0.20 | 0.20 | 7.6 | Right | ||
| MB-11FA300-02-16L | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.00 | 15.8 | 10.0 | 3.00 | 0.20 | 0.20 | 10.0 | Left | ||
| MB-11FA300-02-16R | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.00 | 15.8 | 10.0 | 3.00 | 0.20 | 0.20 | 10.0 | Right | ||
| MB-11FA400-02-16L | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.50 | 15.8 | 10.0 | 4.00 | 0.20 | 0.20 | 8.0 | Left | ||
| MB-11FA400-02-16R | ○ | ○ | ○ | ○ | ○ | 11.00 | 15.80 | 11.50 | 15.8 | 10.0 | 4.00 | 0.20 | 0.20 | 8.0 | Right |
- = First choice = Good choice
