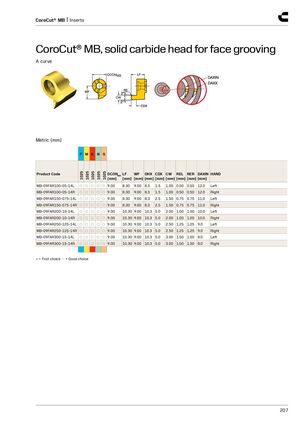

CoroCut® MB, solid carbide head for face grooving
A curve
Metric (mm)
| P | M | K | N | S | |||||||||||||
| Product Code | 1025 | 1025 | 1025 | 1025 | 1025 | DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | DAXIN [mm] | HAND | ||
| MB-09FAR100-05-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 1.5 | 1.00 | 0.50 | 0.50 | 12.0 | Left | ||
| MB-09FAR100-05-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 1.5 | 1.00 | 0.50 | 0.50 | 12.0 | Right | ||
| MB-09FAR150-075-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 2.5 | 1.50 | 0.75 | 0.75 | 11.0 | Left | ||
| MB-09FAR150-075-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 8.30 | 9.00 | 8.3 | 2.5 | 1.50 | 0.75 | 0.75 | 11.0 | Right | ||
| MB-09FAR200-10-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.00 | 1.00 | 1.00 | 10.0 | Left | ||
| MB-09FAR200-10-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.00 | 1.00 | 1.00 | 10.0 | Right | ||
| MB-09FAR250-125-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.50 | 1.25 | 1.25 | 9.0 | Left | ||
| MB-09FAR250-125-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 2.50 | 1.25 | 1.25 | 9.0 | Right | ||
| MB-09FAR300-15-14L | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 1.50 | 1.50 | 8.0 | Left | ||
| MB-09FAR300-15-14R | ○ | ○ | ○ | ○ | ○ | 9.00 | 10.30 | 9.00 | 10.3 | 5.0 | 3.00 | 1.50 | 1.50 | 8.0 | Right |
- = First choice = Good choice
