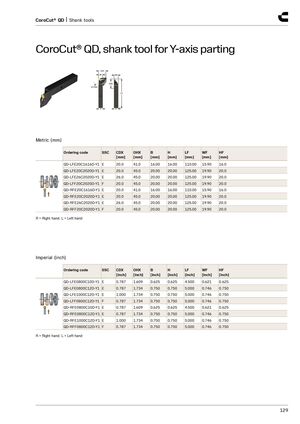

CoroCut® QD, shank tool for Y-axis parting
CDX HF WF
OHX CUTDIA LF
H B
Metric (mm)
| Ordering code | SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] |
| QD-LFE20C1616D-Y1 | E | 20.0 | 41.0 | 16.00 | 16.00 | 110.00 | 15.90 | 16.0 |
| QD-LFE20C2020D-Y1 | E | 20.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-LFE26C2020D-Y1 | E | 26.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-LFF20C2020D-Y1 | F | 20.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-RFE20C1616D-Y1 | E | 20.0 | 41.0 | 16.00 | 16.00 | 110.00 | 15.90 | 16.0 |
| QD-RFE20C2020D-Y1 | E | 20.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-RFE26C2020D-Y1 | E | 26.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-RFF20C2020D-Y1 | F | 20.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] |
| QD-LFE0800C10D-Y1 | E | 0.787 | 1.609 | 0.625 | 0.625 | 4.500 | 0.621 | 0.625 |
| QD-LFE0800C12D-Y1 | E | 0.787 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-LFE1000C12D-Y1 | E | 1.000 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-LFF0800C12D-Y1 | F | 0.787 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-RFE0800C10D-Y1 | E | 0.787 | 1.609 | 0.625 | 0.625 | 4.500 | 0.621 | 0.625 |
| QD-RFE0800C12D-Y1 | E | 0.787 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-RFE1000C12D-Y1 | E | 1.000 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-RFF0800C12D-Y1 | F | 0.787 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
R = Right hand, L = Left hand
