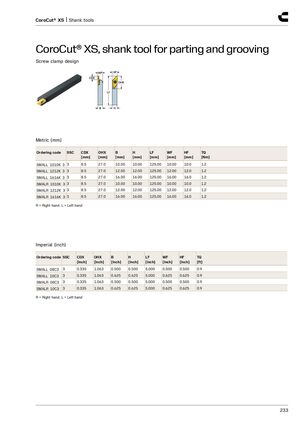

CoroCut® XS, shank tool for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| SMALL 1010K 3 3 | 8.5 | 27.0 | 10.00 | 10.00 | 125.00 | 10.00 | 10.0 | 1.2 |
| SMALL 1212K 3 3 | 8.5 | 27.0 | 12.00 | 12.00 | 125.00 | 12.00 | 12.0 | 1.2 |
| SMALL 1616K 3 3 | 8.5 | 27.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 1.2 |
| SMALR 1010K 3 3 | 8.5 | 27.0 | 10.00 | 10.00 | 125.00 | 10.00 | 10.0 | 1.2 |
| SMALR 1212K 3 3 | 8.5 | 27.0 | 12.00 | 12.00 | 125.00 | 12.00 | 12.0 | 1.2 |
| SMALR 1616K 3 3 | 8.5 | 27.0 | 16.00 | 16.00 | 125.00 | 16.00 | 16.0 | 1.2 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX | OHX | B | H | LF | WF | HF | TQ |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | ||
| SMALL 08C3 | 3 | 0.335 | 1.063 | 0.500 | 0.500 | 5.000 | 0.500 | 0.500 | 0.9 |
| SMALL 10C3 | 3 | 0.335 | 1.063 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 0.9 |
| SMALR 08C3 | 3 | 0.335 | 1.063 | 0.500 | 0.500 | 5.000 | 0.500 | 0.500 | 0.9 |
| SMALR 10C3 | 3 | 0.335 | 1.063 | 0.625 | 0.625 | 5.000 | 0.625 | 0.625 | 0.9 |
R = Right hand, L = Left hand
