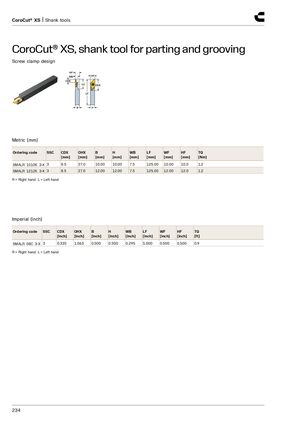

CoroCut® XS, shank tool for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code | SSC | CDX | OHX | B | H | WB | LF | WF | HF | TQ |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | ||
| SMALR 1010K 3-X | 3 | 8.5 | 27.0 | 10.00 | 10.00 | 7.5 | 125.00 | 10.00 | 10.0 | 1.2 |
| SMALR 1212K 3-X | 3 | 8.5 | 27.0 | 12.00 | 12.00 | 7.5 | 125.00 | 12.00 | 12.0 | 1.2 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX | OHX | B | H | WB | LF | WF | HF | TQ |
| [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [inch] | [ft] | ||
| SMALR 08C 3-X | 3 | 0.335 | 1.063 | 0.500 | 0.500 | 0.295 | 5.000 | 0.500 | 0.500 | 0.9 |
R = Right hand, L = Left hand
