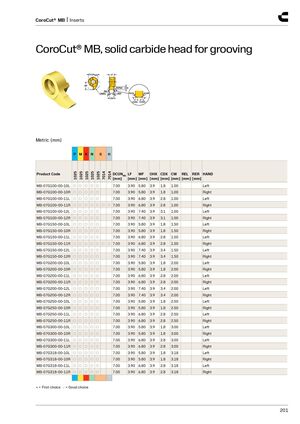

CoroCut® MB, solid carbide head for grooving
Metric (mm)
| P M | K | N | S | H | |||||||||||
| Product Code | 1025 1025 | 1025 | 1025 | 1025 | 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | HAND | |
| MB-07G100-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.00 | Left | ||||
| MB-07G100-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.00 | Right | ||||
| MB-07G100-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 1.00 | Left | ||||
| MB-07G100-00-11R | ○○ | ○ | ○ | ○ | ○ | ○7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 1.00 | Right | |||
| MB-07G100-00-12L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.1 | 1.00 | Left | ||||
| MB-07G100-00-12R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.1 | 1.00 | Right | ||||
| MB-07G150-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.50 | Left | ||||
| MB-07G150-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 1.50 | Right | ||||
| MB-07G150-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 1.50 | Left | ||||
| MB-07G150-00-11R | ○○ | ○ | ○ | ○ | ○ | ○7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 1.50 | Right | |||
| MB-07G150-00-12L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.4 | 1.50 | Left | ||||
| MB-07G150-00-12R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.4 | 1.50 | Right | ||||
| MB-07G200-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.00 | Left | ||||
| MB-07G200-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.00 | Right | ||||
| MB-07G200-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 2.00 | Left | ||||
| MB-07G200-00-11R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 2.00 | Right | ||||
| MB-07G200-00-12L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.4 | 2.00 | Left | ||||
| MB-07G200-00-12R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 7.40 | 3.9 | 3.4 | 2.00 | Right | ||||
| MB-07G250-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.50 | Left | ||||
| MB-07G250-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 2.50 | Right | ||||
| MB-07G250-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 2.50 | Left | ||||
| MB-07G250-00-11R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 2.50 | Right | ||||
| MB-07G300-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 3.00 | Left | ||||
| MB-07G300-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 3.00 | Right | ||||
| MB-07G300-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 3.00 | Left | ||||
| MB-07G300-00-11R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 3.00 | Right | ||||
| MB-07G318-00-10L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 3.18 | Left | ||||
| MB-07G318-00-10R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 5.80 | 3.9 | 1.8 | 3.18 | Right | ||||
| MB-07G318-00-11L | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 3.18 | Left | ||||
| MB-07G318-00-11R | ○○ | ○ | ○ | ○ | 7.00 | 3.90 | 6.80 | 3.9 | 2.8 | 3.18 | Right |
