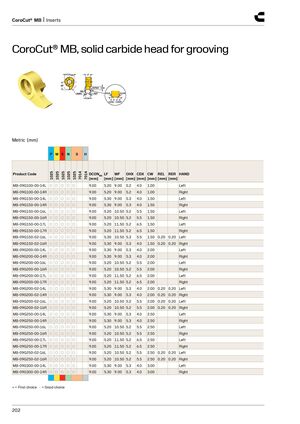

CoroCut® MB, solid carbide head for grooving
Metric (mm)
PMKN S H
| Product Code | 1025 1025 | 1025 | 1025 | 1025 7014 | 7014 DCONMS [mm] | LF [mm] | WF [mm] | OHX [mm] | CDX [mm] | CW [mm] | REL [mm] | RER [mm] | HAND | ||
| MB-09G100-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 4.0 | 1.00 | Left | ||||
| MB-09G100-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 9.00 | 5.2 | 4.0 | 1.00 | Right | ||||
| MB-09G150-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.50 | Left | ||||
| MB-09G150-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.50 | Right | ||||
| MB-09G150-00-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 1.50 | Left | ||||
| MB-09G150-00-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 1.50 | Right | ||||
| MB-09G150-00-17L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 1.50 | Left | ||||
| MB-09G150-00-17R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 1.50 | Right | ||||
| MB-09G150-02-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 10.50 | 5.3 | 5.5 | 1.50 | 0.20 | 0.20 | Left | ||
| MB-09G150-02-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 1.50 | 0.20 | 0.20 | Right | ||
| MB-09G200-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | Left | ||||
| MB-09G200-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | Right | ||||
| MB-09G200-00-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.00 | Left | ||||
| MB-09G200-00-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.00 | Right | ||||
| MB-09G200-00-17L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 2.00 | Left | ||||
| MB-09G200-00-17R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 2.00 | Right | ||||
| MB-09G200-02-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | 0.20 | 0.20 | Left | ||
| MB-09G200-02-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.00 | 0.20 | 0.20 | Right | ||
| MB-09G200-02-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.00 | 0.20 | 0.20 | Left | ||
| MB-09G200-02-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.00 | 0.20 | 0.20 | Right | ||
| MB-09G250-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.50 | Left | ||||
| MB-09G250-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 2.50 | Right | ||||
| MB-09G250-00-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.50 | Left | ||||
| MB-09G250-00-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.50 | Right | ||||
| MB-09G250-00-17L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 2.50 | Left | ||||
| MB-09G250-00-17R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 11.50 | 5.2 | 6.5 | 2.50 | Right | ||||
| MB-09G250-02-16L | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.50 | 0.20 | 0.20 | Left | ||
| MB-09G250-02-16R | ○○ | ○ | ○ | ○ | 9.00 | 5.20 | 10.50 | 5.2 | 5.5 | 2.50 | 0.20 | 0.20 | Right | ||
| MB-09G300-00-14L | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.00 | Left | ||||
| MB-09G300-00-14R | ○○ | ○ | ○ | ○ | 9.00 | 5.30 | 9.00 | 5.3 | 4.0 | 3.00 | Right |
