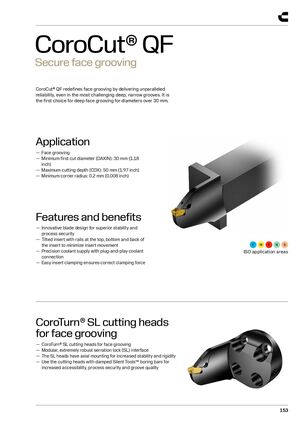

CoroCut® QF CoroCut® QF Secure face grooving CoroCut® QF redefines face grooving by delivering unparalleled reliability, even in the most challenging deep, narrow grooves. It is the first choice for deep face grooving for diameters over 30 mm. Application — Face grooving — Minimum first cut diameter (DAXIN): 30 mm (1.18 inch) — Maximum cutting depth (CDX): 50 mm (1.97 inch) — Minimum corner radius: 0.2 mm (0.008 inch) Features and benefits — Innovative blade design for superior stability and process security — Tilted insert with rails at the top, bottom and back of the insert to minimize insert movement — Precision coolant supply with plug-and-play coolant ISO application areas connection — Easy insert clamping ensures correct clamping force CoroTurn® SL cutting heads for face grooving — CoroTurn® SL cutting heads for face grooving — Modular, extremely robust serration lock (SL) interface — The SL heads have axial mounting for increased stability and rigidity — Use the cutting heads with damped Silent Tools™ boring bars for increased accessibility, process security and groove quality 153
