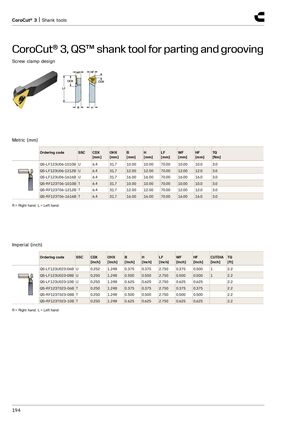

CoroCut® 3, QS™ shank tool for parting and grooving
Screw clamp design
Metric (mm)
| Ordering code SSC | CDX [mm] | OHX [mm] | B [mm] | H [mm] | LF [mm] | WF [mm] | HF [mm] | TQ [Nm] |
| QS-LF123U06-1010B U | 6.4 | 31.7 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 3.0 |
| QS-LF123U06-1212B U | 6.4 | 31.7 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 3.0 |
| QS-LF123U06-1616B U | 6.4 | 31.7 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 3.0 |
| QS-RF123T06-1010B T | 6.4 | 31.7 | 10.00 | 10.00 | 70.00 | 10.00 | 10.0 | 3.0 |
| QS-RF123T06-1212B T | 6.4 | 31.7 | 12.00 | 12.00 | 70.00 | 12.00 | 12.0 | 3.0 |
| QS-RF123T06-1616B T | 6.4 | 31.7 | 16.00 | 16.00 | 70.00 | 16.00 | 16.0 | 3.0 |
R = Right hand, L = Left hand
Imperial (inch)
| Ordering code | SSC | CDX [inch] | OHX [inch] | B [inch] | H [inch] | LF [inch] | WF [inch] | HF [inch] | CUTDIA [inch] | TQ [ft] |
| QS-LF123U023-06B | U | 0.252 | 1.248 | 0.375 | 0.375 | 2.750 | 0.375 | 0.500 | 1 | 2.2 |
| QS-LF123U023-08B | U | 0.250 | 1.248 | 0.500 | 0.500 | 2.750 | 0.500 | 0.500 | 1 | 2.2 |
| QS-LF123U023-10B | U | 0.250 | 1.248 | 0.625 | 0.625 | 2.750 | 0.625 | 0.625 | 2.2 | |
| QS-RF123T023-06B | T | 0.250 | 1.248 | 0.375 | 0.375 | 2.750 | 0.375 | 0.375 | 2.2 | |
| QS-RF123T023-08B | T | 0.250 | 1.248 | 0.500 | 0.500 | 2.750 | 0.500 | 0.500 | 2.2 | |
| QS-RF123T023-10B | T | 0.250 | 1.248 | 0.625 | 0.625 | 2.750 | 0.625 | 0.625 | 2.2 |
R = Right hand, L = Left hand
