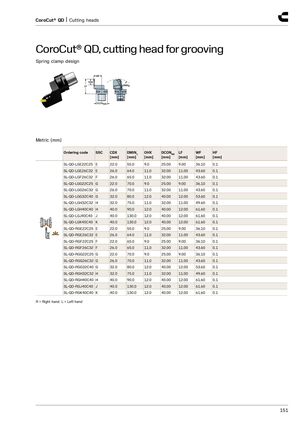

CoroCut® QD | Cutting heads
CoroCut® QD, cutting head for grooving
Spring clamp design
Metric (mm)
| Ordering code | SSC | CDX [mm] | DMIN1 [mm] | OHX [mm] | DCONMS [mm] | LF [mm] | WF [mm] | HF [mm] |
| SL-QD-LGE22C25 | E | 22.0 | 55.0 | 9.0 | 25.00 | 9.00 | 36.10 | 0.1 |
| SL-QD-LGE26C32 | E | 26.0 | 64.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-LGF26C32 | F | 26.0 | 65.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-LGG22C25 | G | 22.0 | 70.0 | 9.0 | 25.00 | 9.00 | 36.10 | 0.1 |
| SL-QD-LGG26C32 | G | 26.0 | 70.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-LGG32C40 | G | 32.0 | 80.0 | 12.0 | 40.00 | 12.00 | 53.60 | 0.1 |
| SL-QD-LGH32C32 | H | 32.0 | 75.0 | 11.0 | 32.00 | 11.00 | 49.60 | 0.1 |
| SL-QD-LGH40C40 | H | 40.0 | 90.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
| SL-QD-LGJ40C40 | J | 40.0 | 130.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
| SL-QD-LGK40C40 | K | 40.0 | 130.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
| SL-QD-RGE22C25 | E | 22.0 | 55.0 | 9.0 | 25.00 | 9.00 | 36.10 | 0.1 |
| SL-QD-RGE26C32 | E | 26.0 | 64.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-RGF22C25 | F | 22.0 | 65.0 | 9.0 | 25.00 | 9.00 | 36.10 | 0.1 |
| SL-QD-RGF26C32 | F | 26.0 | 65.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-RGG22C25 | G | 22.0 | 70.0 | 9.0 | 25.00 | 9.00 | 36.10 | 0.1 |
| SL-QD-RGG26C32 | G | 26.0 | 70.0 | 11.0 | 32.00 | 11.00 | 43.60 | 0.1 |
| SL-QD-RGG32C40 | G | 32.0 | 80.0 | 12.0 | 40.00 | 12.00 | 53.60 | 0.1 |
| SL-QD-RGH32C32 | H | 32.0 | 75.0 | 11.0 | 32.00 | 11.00 | 49.60 | 0.1 |
| SL-QD-RGH40C40 | H | 40.0 | 90.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
| SL-QD-RGJ40C40 | J | 40.0 | 130.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
| SL-QD-RGK40C40 | K | 40.0 | 130.0 | 12.0 | 40.00 | 12.00 | 61.60 | 0.1 |
R = Right hand, L = Left hand
