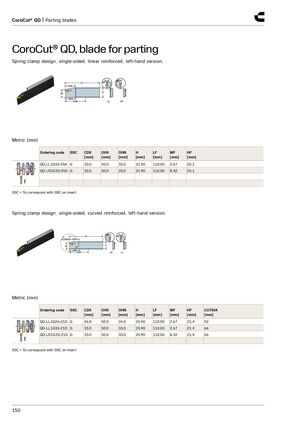

CoroCut® QD, blade for parting
Spring clamp design, single-sided, linear reinforced, left-hand version.
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| QD-LL1G33-25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 2.67 | 25.1 |
| QD-LR1G33-25A | G | 33.0 | 50.0 | 33.0 | 31.90 | 110.00 | 8.32 | 25.1 |
SSC = To correspond with SSC on insert Spring clamp design, single-sided, curved reinforced, left-hand version.
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF | CUTDIA |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| QD-LL1G26-21D | G | 26.0 | 50.0 | 26.0 | 25.90 | 110.00 | 2.67 | 21.4 | 52 |
| QD-LL1G33-21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 2.67 | 21.4 | 66 |
| QD-LR1G33-21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 8.32 | 21.4 | 66 |
SSC = To correspond with SSC on insert
