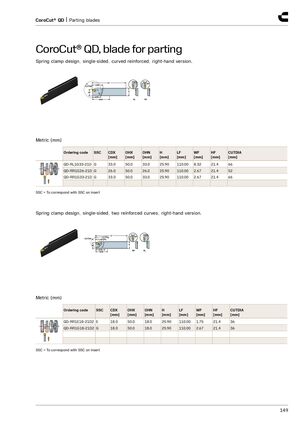

CoroCut® QD, blade for parting
Spring clamp design, single-sided, curved reinforced, right-hand version.
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF | CUTDIA |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| QD-RL1G33-21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 8.32 | 21.4 | 66 |
| QD-RR1G26-21D | G | 26.0 | 50.0 | 26.0 | 25.90 | 110.00 | 2.67 | 21.4 | 52 |
| QD-RR1G33-21D | G | 33.0 | 50.0 | 33.0 | 25.90 | 110.00 | 2.67 | 21.4 | 66 |
SSC = To correspond with SSC on insert Spring clamp design, single-sided, two reinforced curves, right-hand version.
Metric (mm)
| Ordering code | SSC | CDX | OHX | OHN | H | LF | WF | HF | CUTDIA |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| QD-RR1E18-21D2 | E | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 1.75 | 21.4 | 36 |
| QD-RR1G18-21D2 | G | 18.0 | 50.0 | 18.0 | 25.90 | 110.00 | 2.67 | 21.4 | 36 |
SSC = To correspond with SSC on insert
